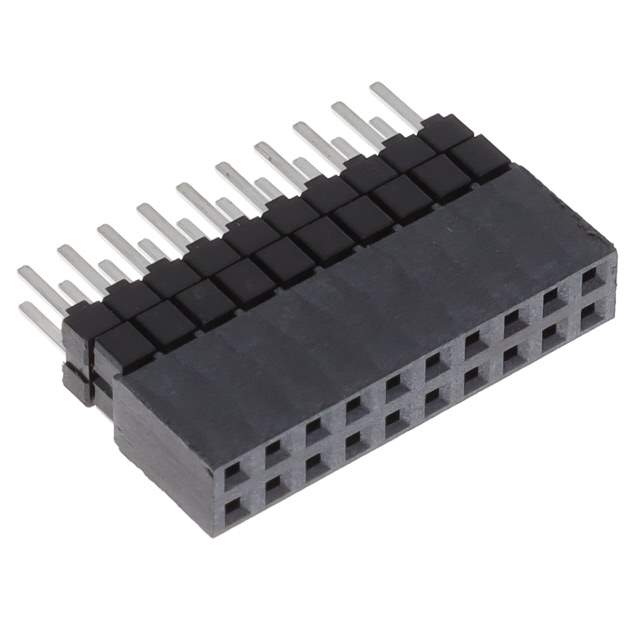

ESW-110-23-S-D Real Image
Same model may have multiple batches, images only for reference.

ESW-110-23-S-D

Part No ESW-110-23-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description ELEVATED SOCKET STRIPS / Conn Elevated Socket SKT 20 POS 2.54mm Solder ST Top Entry Thru-Hole Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series ESW
Packaging Bulk
Connector Type Elevated Socket
Contact Type Forked
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Insulation Color Black
Insulation Height 0.535" (13.60mm)
Contact Length - Post 0.190" (4.83mm)
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating 5.2A per Contact
Voltage Rating 550VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Win Source Part Number 774261-ESW-110-23-S-D
Popularity Medium
Supply and Demand Status Limited
Family Name ESW
Introduction Date September 18, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ESW-110-23-S-D CAD Model

Description

This elevated socket connector is a board-to-board connector from Samtec Inc..

  • Series: ESW
  • Win Source Part Number: 774261-ESW-110-23-S-D
  • Positions: 20
  • Mounting: Through Hole
  • Temperature Range: -55°C to 125°C
  • Contact Type: Forked
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 550VAC
  • Current Rating: 5.2A per contact
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 30μin (0.76μm)
  • Contact Finish-Post: Tin
  • Contact Length-Post: 0.190" (4.83mm)
  • Contact Shape: Square
  • Compliance: Halogen-Free
