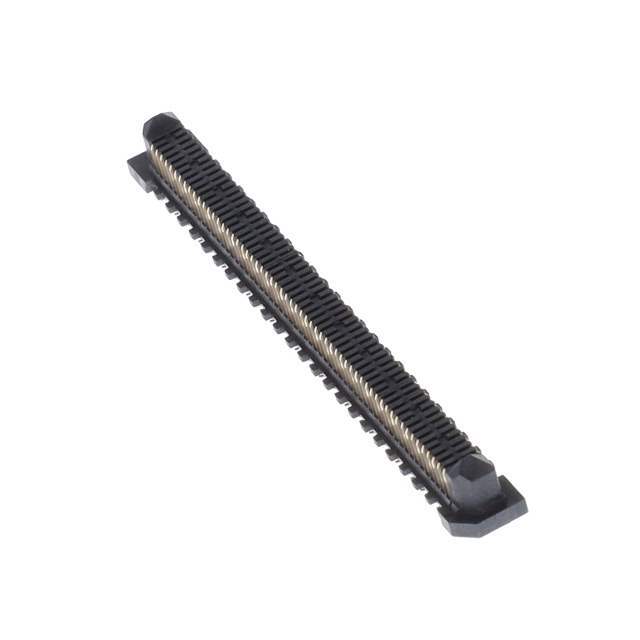

ERM8-060-02.0-S-DV-TR Samtec Inc.
Same model may have multiple batches, images only for reference.

ERM8-060-02.0-S-DV-TR

Part No ERM8-060-02.0-S-DV-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HDR 120POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202492-ERM8-060-02.0-S-DV-TR
Manufacturer Samtec Inc.
Category Connectors, Interconnects- Rectangular Connectors- Arrays, Edge Type, Mezzanine (Board to Board)
Series Edge Rate™ ERM8
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 120
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian ERM8-060-02.0-S-DV-TR CAD Model

Description

The 1202492 is a rectangular connector array manufactured by Samtec Inc.

  • Category: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Series: Edge Rate™ ERM8
  • Positions: 120
  • Mating Pitch: 0.031" (0.80mm)
  • Connector Type: Header
  • Contact Type: Center Strip
  • Packaging: Tape & reel or cut tape
  • Mounting Type: Surface Mount
  • Status: Active
