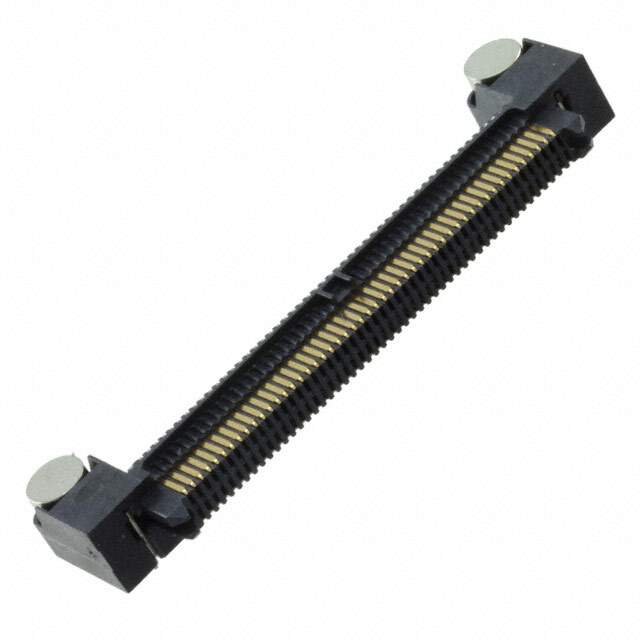

The ERM8-050-01-L-D-RA-TR is a high-density, rugged Edge Rate® connector manufactured by Samtec. It's designed for high-speed, high-cycle applications, offering reliable connectivity and excellent signal integrity. This particular model features 50 contacts, a right-angle orientation, and is provided on tape and reel for automated assembly.

Applications

• High-Speed Data Transmission: Used in servers, routers, and networking equipment.
• Industrial Automation: Employed in industrial controllers and machine vision systems.
• Medical Imaging: Integrated into medical imaging devices such as CT scanners and MRI machines.
• Test and Measurement Equipment: Utilized in oscilloscopes, signal generators, and logic analyzers.
• Military and Aerospace: Found in avionics, radar systems, and communication equipment.

Features

• 50 Contacts: Provides a high number of signal lines for increased data throughput.
• Right-Angle Orientation: Allows for perpendicular board-to-board connections.
• Edge Rate® Contact System: Designed for optimized signal integrity at high speeds.
• Rugged Design: Withstands harsh environments and high-cycle mating.
• Tape and Reel Packaging: Suitable for automated pick-and-place assembly.

Benefits

• High-Speed Performance: Enables reliable data transmission at high frequencies.
• Space Saving: Right-angle design allows for compact system integration.
• Robust Connection: Ensures a secure and durable connection even under vibration and shock.
• Automated Assembly: Tape and reel packaging reduces assembly time and costs.
• Long Lifespan: High-cycle mating capability ensures a long operating life.

Additional Details

The ERM8-050-01-L-D-RA-TR utilizes Samtec's Edge Rate® contact system, which features a smooth, milled contact surface that minimizes wear and tear during mating. The insulator material is liquid crystal polymer (LCP), which offers excellent electrical and mechanical properties. The contacts are gold-plated for enhanced conductivity and corrosion resistance. This connector is designed for a board stack height of 8mm and is RoHS compliant. It's ideal for applications requiring high-density, high-speed, and reliable board-to-board connections.
