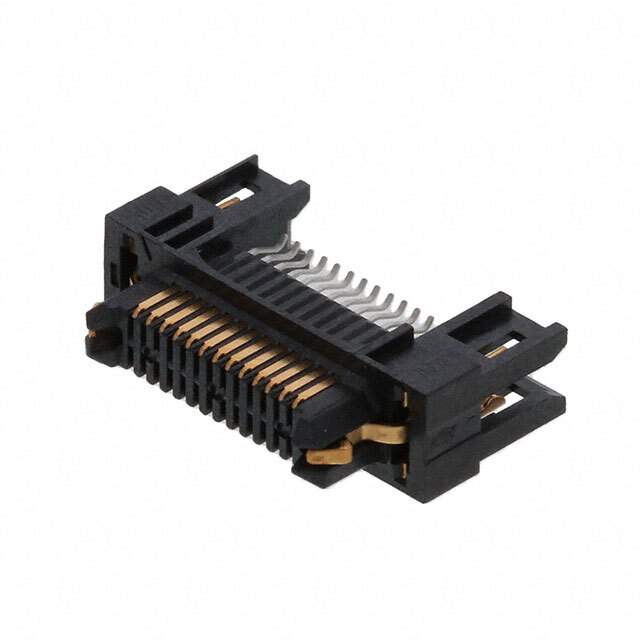

ERM8-013-01-L-D-EM2-L-TR

Name: ERM8-013-01-L-D-EM2-L-TR
Brand: Samtec Inc.
SKU: 1074490
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ERM8-013-01-L-D-EM2-L-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 26POS EDGE MNT GOLD / 26 Position Connector Header, Center Strip Contacts Board Edge, Straddle Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Edge Rate™ ERM8
Package	Tape & Reel
Connector Type	Header, Center Strip Contacts
Number of Positions	26
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Board Edge, Straddle Mount
Features	Latches
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Base Product Number	ERM8-013
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM13695DKR,ERM8-013-01-L-D-EM2-L-TR-ND,SAM13695CT,SAM13695TR
Standard Package	125
Win Source Part Number	1074490-ERM8-013-01-L-D-EM2-L-TR
Ultra Librarian 3D Model	Ultra Librarian ERM8-013-01-L-D-EM2-L-TR CAD Model

Alternative Products

Description

The Edge Rate™ ERM8 series connector is a high-performance connector that is ideal for use in electronic devices.

Positions: 26
Pitch: 0.031" (0.80mm)
Connector Type: Header, Center Strip Contacts
Number of Rows: 2
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Package: Tape & Reel
Mounting Type: Board Edge, Straddle Mount
ECCN: EAR99
REACH: Unaffected
HTSUS: 8536.69.4040
Manufacturer: Samtec Inc.
Other Names: SAM13695DKR, ERM8-013-01-L-D-EM2-L-TR-ND, SAM13695CT, SAM13695TR
