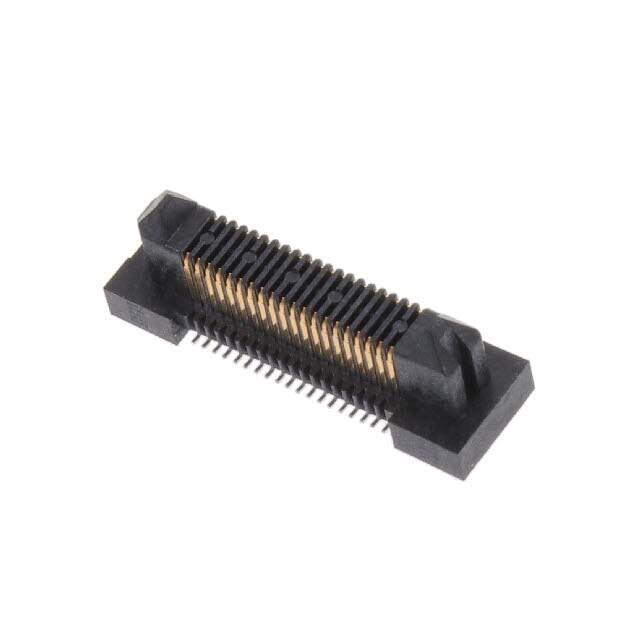

ERM5-020-02.0-L-DV-TR Real Image
Same model may have multiple batches, images only for reference.

ERM5-020-02.0-L-DV-TR

Part No ERM5-020-02.0-L-DV-TR
Manufacturer Samtec Inc.
Catalog Rectangular - Board to Board Connectors
Description CONN HDR 40POS SMD GOLD / 40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
ERM5-020-02.0-L-DV-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Edge Rate™ ERM5
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 7mm, 9mm
Height Above Board 0.191" (4.85mm)
Base Product Number ERM5-020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM13654CT,SAM13654TR,SAM13654DKR,ERM5-020-02.0-L-DV-TR-ND
Standard Package 625
Win Source Part Number 1198308-ERM5-020-02.0-L-DV-TR
Ultra Librarian 3D Model Ultra Librarian ERM5-020-02.0-L-DV-TR CAD Model

Description

The Samtec Inc. Edge Rate™ ERM5 1198308-ERM5-020-02.0-L-DV-TR is a rectangular connector array with a header and outer shroud contacts.

  • Manufacturer: Samtec Inc.
  • Series: Edge Rate™ ERM5
  • Connector Type: Rectangular Connector Array
  • Contact Type: Header and Outer Shroud
  • Number of Positions: 40
  • Pitch: 0.020 inches (0.50mm)
  • Board Guide: Yes
  • Height Above Board: 0.191 inches (4.85mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Package: Tape and Reel
  • Mounting Style: Surface Mount
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
