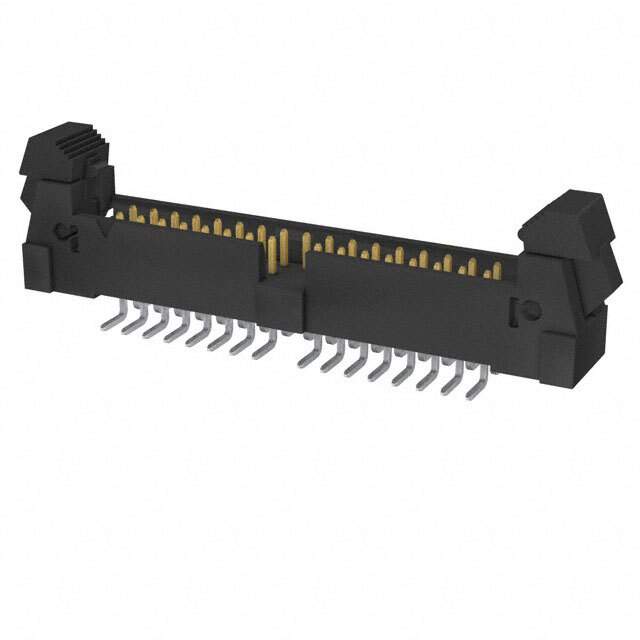

EHT-117-01-S-D-SM-17-TR Real Image
Same model may have multiple batches, images only for reference.

EHT-117-01-S-D-SM-17-TR

Part No EHT-117-01-S-D-SM-17-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 34POS 2MM / Connector Header Surface Mount 34 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series EHT
Package Tape & Reel (TR)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded 33
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.370" (9.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number EHT-117
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 125
Win Source Part Number 1215669-EHT-117-01-S-D-SM-17-TR
Ultra Librarian 3D Model Ultra Librarian EHT-117-01-S-D-SM-17-TR CAD Model

Description

The EHT series from Samtec Inc. offers a rectangular connector with male pins.

  • Connector Type: header
  • Keying: keying slot
  • Positions: 34
  • Rows: 2 rows of 33 positions loaded
  • Termination: solder
  • Fastening Type: latch lock/eject hooks
  • Package: tape & reel (TR)
  • Contact Material: phosphor bronze
  • Voltage Rating: undefined
  • Ingress Protection: undefined
  • Material Flammability: UL94 V-0
  • Insulation Material: liquid crystal polymer (LCP)
  • Pitch: 0.079" (2.00mm)
  • Shrouded: 4 wall
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0μin (0.76μm) for mating and tin for post
  • Mounting: SMD (SMT)
  • Style: board to cable/wire
  • Standard Package: 125
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Base Product Number: EHT-117
