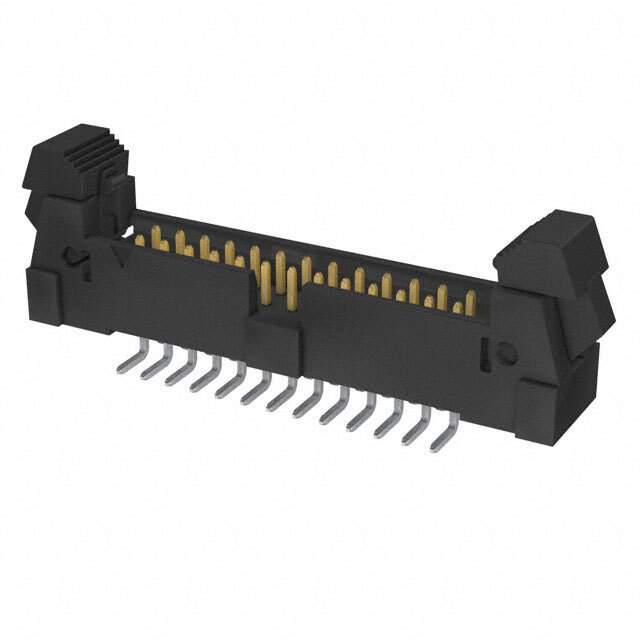

EHT-113-01-S-D-SM-K-TR

Name: EHT-113-01-S-D-SM-K-TR
Brand: Samtec Inc.
SKU: 773705
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EHT-113-01-S-D-SM-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2MM EJECTOR HEADER / Conn Ejector Header HDR 26 POS 2mm Solder ST SMD T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	EHT
Packaging	Reel package
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.370" (9.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot, Pick and Place
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3A
Win Source Part Number	773705-EHT-113-01-S-D-SM-K-TR
Popularity	Medium
Supply and Demand Status	Limited
Family Name	EHT
Introduction Date	March 22, 2001
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian EHT-113-01-S-D-SM-K-TR CAD Model

Alternative Products

Description

The EHT-113-01-S-D-SM-K-TR from Samtec Inc. is a 26-position header connector with male pins.

Positions: 26
Rows: 2
Positions Loaded: All
Fastening Type: Latch Lock/Eject Hooks
Mounting: SMD
Contact Material: Phosphor Bronze
Voltage Rating: -
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch-Mating: 0.079" (2.00mm)
Contact Finish: Gold (30μin (0.76μm) thick)
Application: Board-to-Cable/Wire
Temperature Range: -55°C to 125°C
