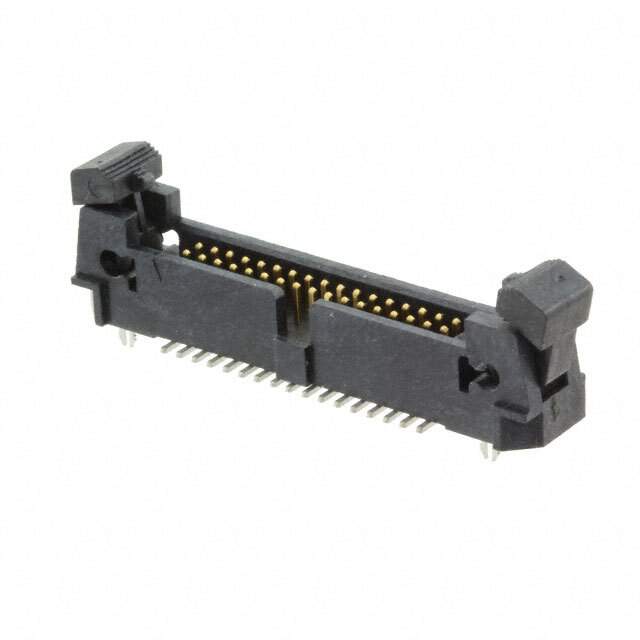

EHF-117-01-L-D-SM-LC

Name: EHF-117-01-L-D-SM-LC
Brand: Samtec Inc.
SKU: 773698
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EHF-117-01-L-D-SM-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER .050" 34POS DUAL SMD / Conn Ejector Header HDR 34 POS 1.27mm Solder ST SMD Tube
Datasheet	EHF-117-01-L-D-SM-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	EHF
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.325" (8.25mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Lock, Keying Slot
Operating Temperature Range	-55°C ~ 125°C
Insulation Color	Black
Current Rating	1.75A
Win Source Part Number	773698-EHF-117-01-L-D-SM-LC
Popularity	Medium
Supply and Demand Status	Limited
Family Name	EHF
Introduction Date	October 07, 2003
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian EHF-117-01-L-D-SM-LC CAD Model

Alternative Products

Description

The 773698-EHF-117-01-L-D-SM-LC is a board-to-cable/wire connector with a pitch of 0.050" (1.27mm) and a shrouded 4-wall design, manufactured by Samtec Inc.

Connector Type: Board-to-Cable/Wire
Pitch: 0.050" (1.27mm)
Shrouding: 4-Wall
Positions: 34
Connector Type: Male Pin Header
Voltage Rating: -
Current Rating: 1.75A
Fastening Type: Latch Lock/Eject Hooks
Termination: Solder
Contact Material: Phosphor Bronze
Contact Finish: Gold (10μin (0.25μm) thick)
