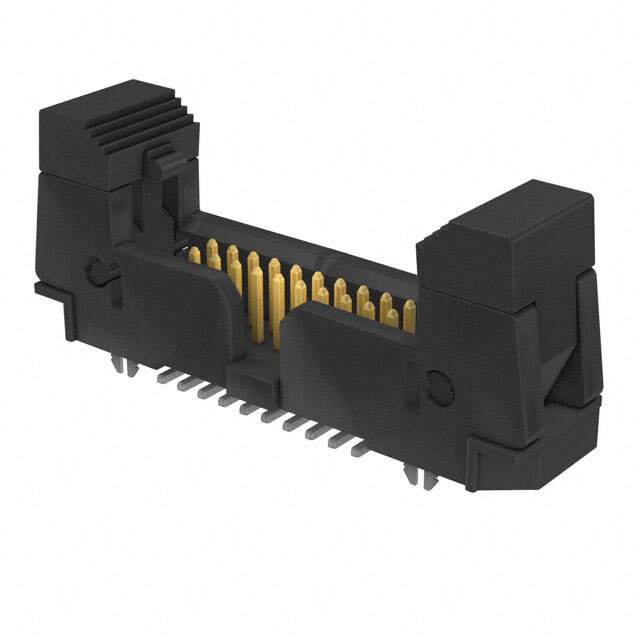

EHF-110-01-LM-D-SM-LC-A

Name: EHF-110-01-LM-D-SM-LC-A
Brand: Samtec Inc.
SKU: 450965
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EHF-110-01-LM-D-SM-LC-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050 EJECTOR HEADER ASSEMBLY
Datasheet	EHF-110-01-LM-D-SM-LC-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.325" (8.25mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Guide, Board Lock, Keying Slot
Temperature Range - Operating	-55°C to 125°C
Insulation Color	Black
Current Rating	1.75A
Win Source Part Number	1035965-EHF-110-01-LM-D-SM-LC-A
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian EHF-110-01-LM-D-SM-LC-A CAD Model

Alternative Products

Description

The EHF series header connector is a male pin connector with a 2-row, 20-position configuration.

Rows: 2
Positions: 20
Features: Board Guide, Board Lock, Keying Slot
Insulation Material: Liquid Crystal Polymer (LCP) and Glass-Filled
Pitch-Mating: 0.050 inches
Mating Contact Finish: Gold (10μin)
Design: Shrouded 4-Wall
Insulation Height: 0.325 inches
Temperature Range: -55°C to 125°C
Application: Board to Cable/Wire
Packaging: Tube/Rail
