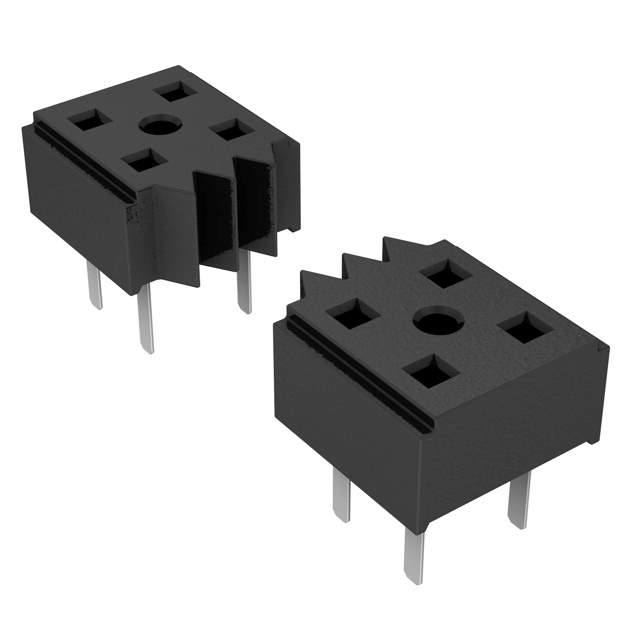

CLT-105-01-L-D Real Image
Same model may have multiple batches, images only for reference.

CLT-105-01-L-D

Part No CLT-105-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 10POS 0.079 GOLD PCB / 10 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet
CLT-105-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLT
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.083" (2.10mm)
Contact Length - Post 0.085" (2.16mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLT-105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1164-05
Standard Package 1
Win Source Part Number 1209615-CLT-105-01-L-D
Ultra Librarian 3D Model Ultra Librarian CLT-105-01-L-D CAD Model

Description

The CLT series connector is a receptacle type with 10 positions and no specific features.

  • Type: Receptacle
  • Positions: 10
  • Features: None
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Pitch: 0.079" (2.00mm)
  • Mating Contact Finish: Gold (10.0µin or 0.25µm)
  • Termination: Soldering
  • Fastening Type: Push-Pull
  • Package: Tube
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Application: Board to Board
