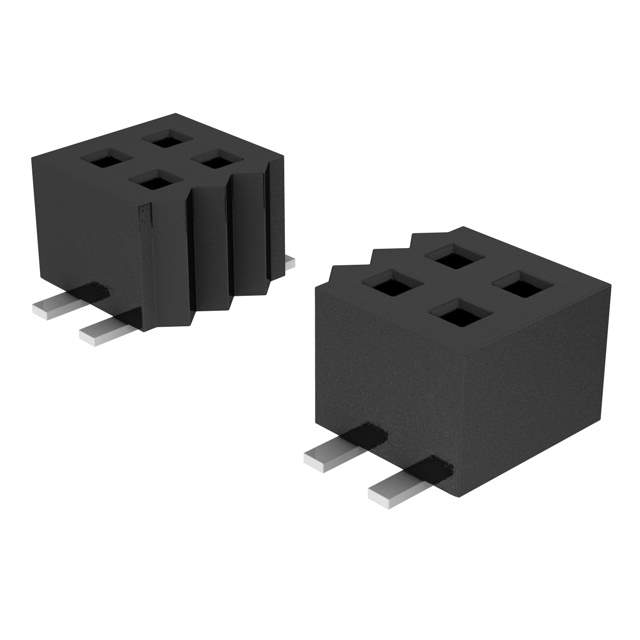

CLP-135-02-L-D

Part No CLP-135-02-L-D
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN RCPT 70POS 0.05 GOLD SMD / 70 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet
CLP-135-02-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLP
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 70
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.090" (2.29mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.3A per Contact
Voltage Rating 240VAC, 330VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLP-135
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1155-35
Standard Package 1
Win Source Part Number 973545-CLP-135-02-L-D
Ultra Librarian 3D Model Ultra Librarian CLP-135-02-L-D CAD Model

Description

The CLP series connectors from Samtec Inc. are ideal for board-to-board applications.

  • Pitch: 0.050" (1.27mm)
  • Positions: 70 (all loaded)
  • Voltage Rating: 240VAC, 330VDC
  • Current Rating: 3.3A per contact
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Contact Material: Phosphor Bronze
  • Mating Finish: Gold
  • Post Finish: Tin
  • Temperature Range: -55°C ~ 125°C
  • Mounting Type: SMD (SMT)
  • Packaging: Bulk
  • Fastening Type: Push-Pull
