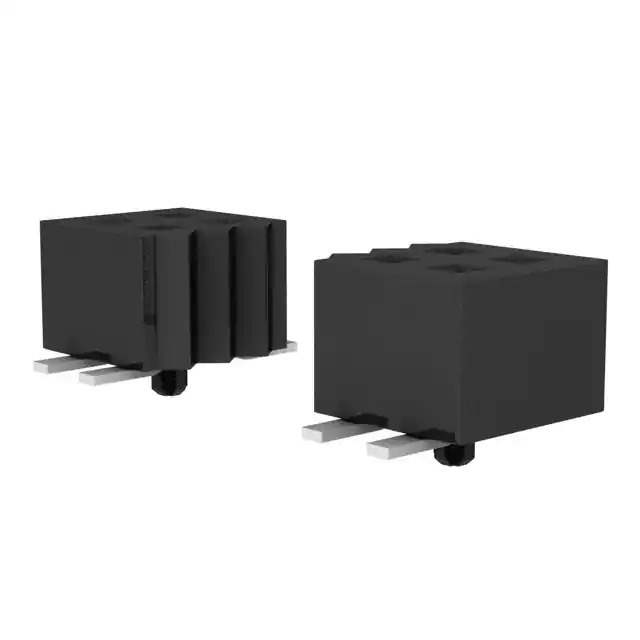

CLP-106-02-F-D-A-K Real Image
Same model may have multiple batches, images only for reference.

CLP-106-02-F-D-A-K

Part No CLP-106-02-F-D-A-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 12POS 0.05 GOLD SMD
Datasheet
CLP-106-02-F-D-A-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLP
Package Tube
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.084" (2.14mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide, Pick and Place
Current Rating (Amps) 3.3A per Contact
Voltage Rating 240VAC, 330VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLP-106
Standard Package 72 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 848902-CLP-106-02-F-D-A-K
Ultra Librarian 3D Model Ultra Librarian CLP-106-02-F-D-A-K CAD Model

Description

The 848902-CLP-106-02-F-D-A-K is a female socket header connector from Samtec Inc.'s CLP series.

  • Series: CLP
  • Connector Type: Rectangular, Board-to-Board
  • Positions: 12
  • Pitch: 0.050" (1.27mm)
  • Features: Board Guide, Pick and Place
  • Termination Style: Solder
  • Fastening Type: Push-Pull
  • Packaging: Tube
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 3.00µin (0.076µm)
  • Contact Finish (Post): Tin
  • Mounting Type: Surface Mount
  • Shrouded: Yes
  • Mating Row Spacing: 0.050" (1.27mm)
  • Insulation Height: 0.084" (2.14mm)
  • Operating Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Product Status: Active
