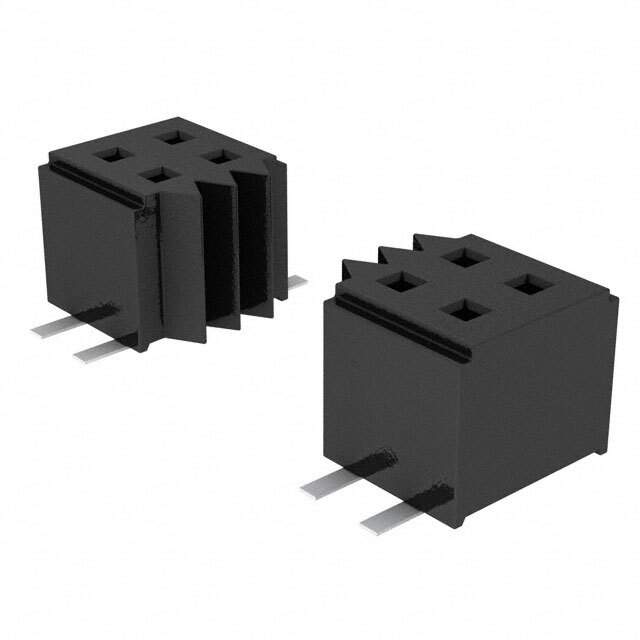

The CLM-110-02-F-D-P-TR is a connector from Samtec's CLM series. This is a high-density, hermaphroditic, surface mount edge card socket designed for board-to-board connections. It provides a reliable and space-saving interconnect solution for various applications.

Applications

• Board-to-board connections
• High-density electronic packaging
• Medical equipment
• Telecommunications equipment
• Industrial automation

Features

• Number of positions: 20 (10 per row, double row)
• Pitch: 0.8 mm
• Mating interface: Edge card
• Termination style: Surface mount (SMT)
• Body orientation: Vertical
• Housing material: Liquid Crystal Polymer (LCP)
• Contact material: Phosphor Bronze
• Plating: Gold over Nickel
• Packaging: Tape & Reel (TR)

Benefits

• High-density interconnect: Enables more connections in less space
• Hermaphroditic design: Reduces inventory by allowing the same connector to be used on both boards
• Surface mount termination: Facilitates automated assembly processes
• Durable construction: Ensures reliable performance in demanding environments
• Gold plating: Provides excellent conductivity and corrosion resistance

Technical Specifications

The CLM-110-02-F-D-P-TR connector features a 0.8 mm pitch and a double-row configuration with 20 total positions. It is designed for surface mount termination and has a vertical body orientation. The housing is made of LCP, a high-performance thermoplastic that offers excellent electrical and mechanical properties. The contacts are made of phosphor bronze, a durable and conductive material, and are plated with gold over nickel to provide superior conductivity and corrosion resistance. The connector is packaged on tape and reel for automated assembly.

The hermaphroditic design of this connector eliminates the need for separate male and female connectors, simplifying inventory management and reducing costs. Its high-density configuration makes it ideal for applications where space is limited, while its durable construction ensures reliable performance in demanding environments.
