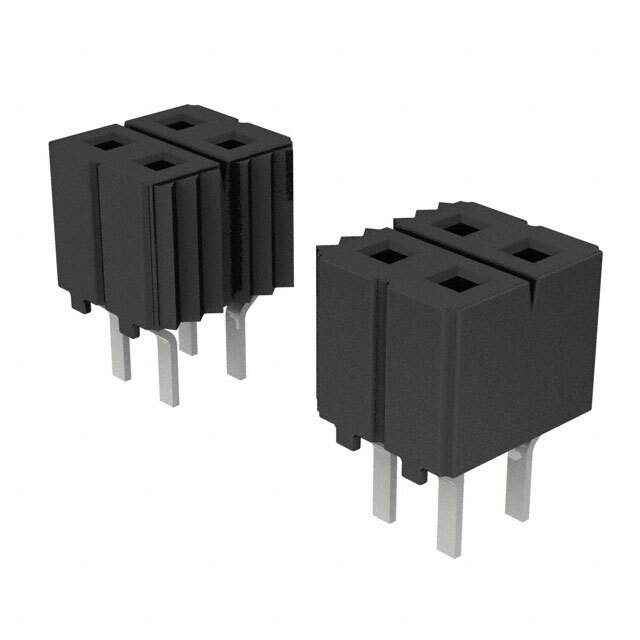

CES-108-01-T-D Real Image
Same model may have multiple batches, images only for reference.

CES-108-01-T-D

Part No CES-108-01-T-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 16POS 0.1 TIN PCB / 16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Datasheet
CES-108-01-T-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CES
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.200" (5.08mm)
Contact Length - Post 0.128" (3.25mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CES-108
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1086-08
Standard Package 1
Win Source Part Number 1089540-CES-108-01-T-D
Ultra Librarian 3D Model Ultra Librarian CES-108-01-T-D CAD Model

Description

The CES series connector is a rectangular connector that is used in board-to-board applications.

  • Connector Type: receptacle
  • Contact Type: female socket
  • Insulation Material: polybutylene terephthalate (PBT)
  • Insulation Color: black
  • Mounting Type: through-hole
  • Contact Material: phosphor bronze
  • Contact Finish (Mating): tin
  • Contact Finish (Post): tin
  • Temperature Range: -55°C to 105°C
  • Applications: board-to-board connections
  • Positions Loaded: 16
