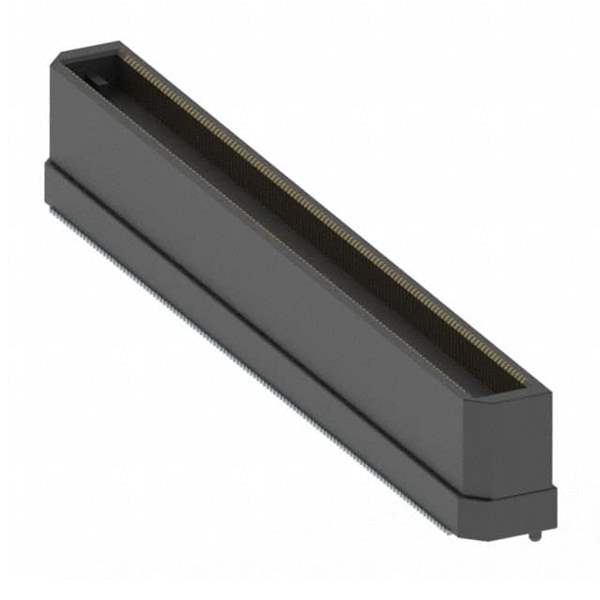

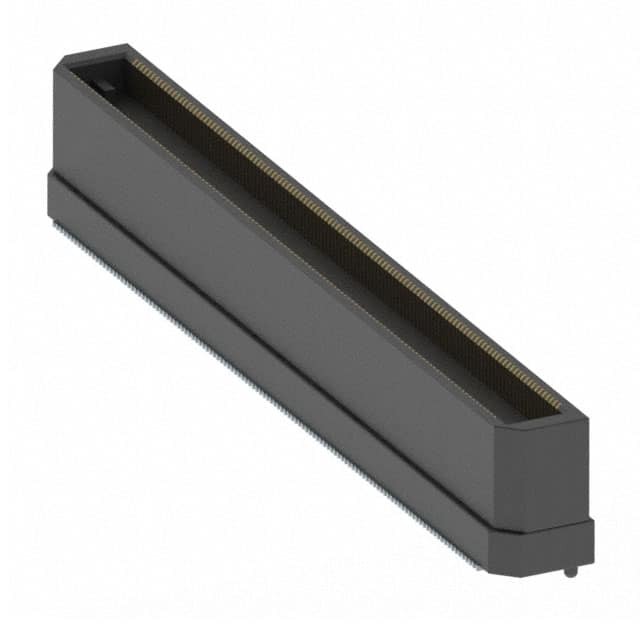

BTH-120-03-F-D-A-TR

Name: BTH-120-03-F-D-A-TR
Brand: Samtec Inc.
SKU: 864852
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BTH-120-03-F-D-A-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 240POS SMD GOLD
Datasheet	BTH-120-03-F-D-A-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	BTH
Package	Tape & Reel
Product Status	Active
Connector Type	Header, Outer Shroud Contacts
Number of Positions	240
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	3.00µin (0.076µm)
Mated Stacking Heights	11mm
Height Above Board	0.404" (10.27mm)
Base Product Number	BTH-120
Standard Package	150 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	864852-BTH-120-03-F-D-A-TR
Ultra Librarian 3D Model	Ultra Librarian BTH-120-03-F-D-A-TR CAD Model

Alternative Products

Description

The 864852-BTH-120-03-F-D-A-TR is an edge type mezzanine connector from the BTH series.

Series: BTH
Positions: 240
Pitch: 0.020" (0.50mm)
Features: Board Guide, Outer Shroud Contacts
Mounting: Surface Mount
Contact Finish: Gold
Contact Finish Thickness: 3.00μin (0.076μm)
Package: Tape & Reel
Pieces per Package: 150
Mated Stacking Height: 11mm
Height Above Board: 0.404" (10.27mm)
ECCN: EAR99
Pin Length: 0.830" (21.082mm)
