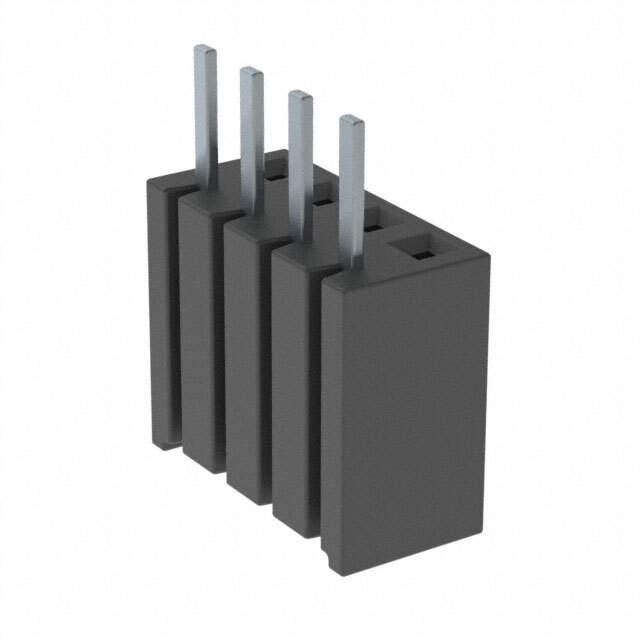

Same model may have multiple batches, images only for reference.

BSW-104-04-T-S

Name: BSW-104-04-T-S
Brand: Samtec Inc.
SKU: 770438
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSW-104-04-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	BOTTOM MOUNT STRIPS / Conn Bottom Mount Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Bulk
Datasheet	BSW-104-04-T-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	BSW
Packaging	Bulk
Connector Type	Receptacle, Breakaway
Contact Type	Female Socket
Style	Board to Board
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting	Through Hole, Bottom Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.350" (8.89mm)
Contact Length - Post	0.170" (4.32mm)
Operating Temperature Range	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Win Source Part Number	770438-BSW-104-04-T-S
Popularity	Medium
Supply and Demand Status	Balance
Family Name	BSW
Introduction Date	April 10, 2003
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia , Singapore , Taiwan , United States of America , Vietnam
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian BSW-104-04-T-S CAD Model

Alternative Products

Description

The BSW-104-04-T-S is a rectangular connector from Samtec Inc.

Positions: 4
Type: Receptacle, Breakaway
Contact Type: Female Socket
Positions Loaded: All
Pitch-Mating: 0.100 inches (2.54mm)
Pitch-Cable: -
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Insulation Material: Polyethylene Terephthalate (PET), Glass Filled
Insulation Color: Black
ECCN: EAR99
Estimated EOL Date: 2025
