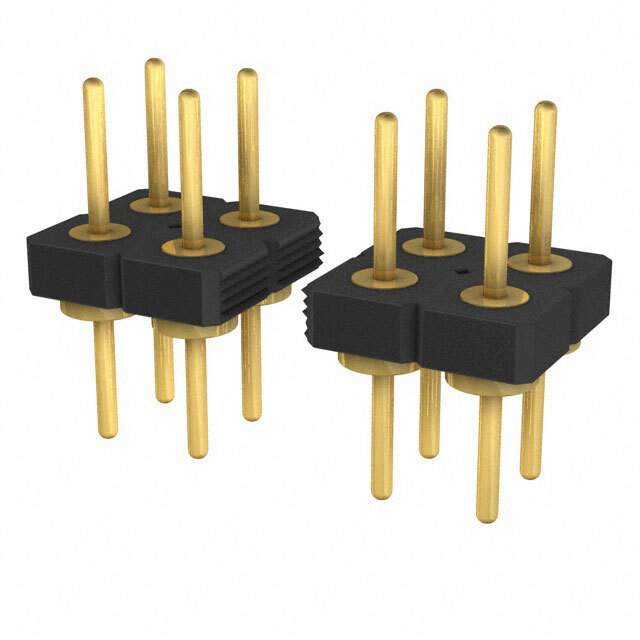

Same model may have multiple batches, images only for reference.

BDL-120-G-F

Name: BDL-120-G-F
Brand: Samtec Inc.
SKU: 772713
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BDL-120-G-F
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	INTERCONNECT STRIPS / Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Tube
Datasheet	BDL-120-G-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	BDL
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.122" (3.10mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.332" (8.43mm)
Insulation Height	0.085" (2.15mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20μin (0.51μm)
Contact Finish - Post	Nickel
Insulation Material	Polyamide (PA), Nylon
Operating Temperature Range	-55°C ~ 125°C
Insulation Color	Black
Contact Finish Thickness - Post	50μin (1.27μm)
Win Source Part Number	772713-BDL-120-G-F
Popularity	Medium
Supply and Demand Status	Balance
Family Name	BDL
Introduction Date	April 09, 1997
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian BDL-120-G-F CAD Model

Alternative Products

Description

The Samtec Inc. connector with Win Source Part Number 772713-BDL-120-G-F is a male pin header type connector with 40 positions loaded and a pitch of 0.100" (2.54mm).

Contact Finish: Gold
Post Finish: Nickel
Contact Shape: Circular
Contact Length: 0.332" (8.43mm)
RoHS Compliant: Yes
Temperature Range: -55°C to 125°C
