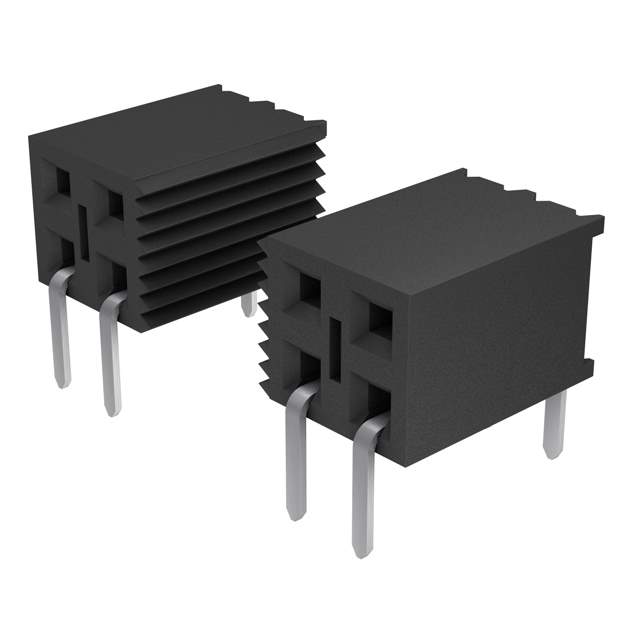

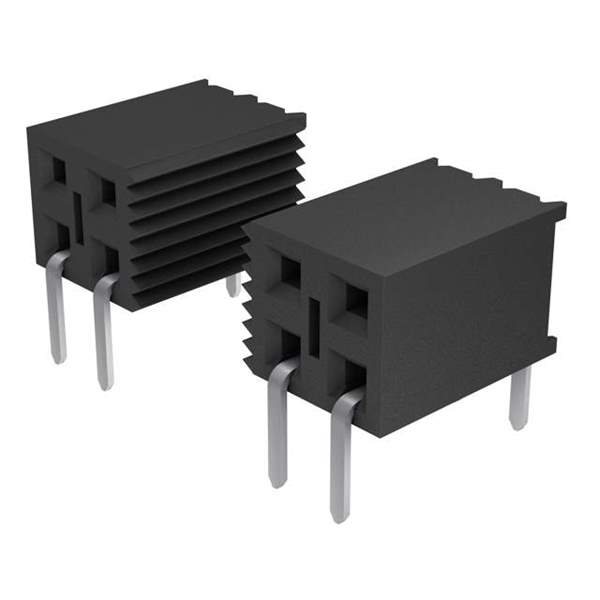

BCS-112-L-D-HE Real Image
Same model may have multiple batches, images only for reference.

BCS-112-L-D-HE

Part No BCS-112-L-D-HE
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 24POS 0.1 GOLD PCB R/A  /  24 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Datasheet
BCS-112-L-D-HE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Claw™ BCS
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 24
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.225" (5.72mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.6A per Contact
Voltage Rating 475VAC
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number BCS-112
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1006-12
Standard Package 1
Win Source Part Number 1032147-BCS-112-L-D-HE
Ultra Librarian 3D Model Ultra Librarian BCS-112-L-D-HE CAD Model

Description

The Tiger Claw BCS BCS-112-L-D-HE is a rectangular connector that is a part of the Tiger Claw BCS series.

  • Connector Type: Receptacle
  • Number of Positions: 24
  • Number of Rows: 2
  • Current Rating: 4.6A per contact
  • Termination: Solder
  • Voltage Rating: 475VAC
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold
  • Package: Tube
  • Insulation Material: Liquid Crystal Polymer (LCP) and Glass Filled
  • Insulation Height: 0.225”
  • Row Spacing: 0.100”
  • ECCN: EAR99
  • Popularity: Popular
