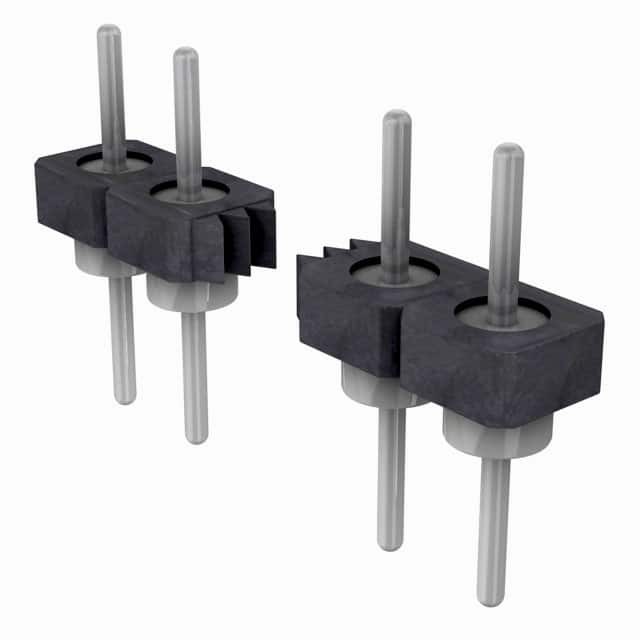

BBL-123-T-F

Name: BBL-123-T-F
Brand: Samtec Inc.
SKU: 1227653
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BBL-123-T-F
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 23POS 2.54MM / Connector Header Through Hole 23 position 0.100" (2.54mm)
Datasheet	BBL-123-T-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	BBL
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	23
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.122" (3.10mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.332" (8.43mm)
Insulation Height	0.085" (2.15mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Nickel
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	BBL-123
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1003-23
Standard Package	1
Win Source Part Number	1227653-BBL-123-T-F
Ultra Librarian 3D Model	Ultra Librarian BBL-123-T-F CAD Model

Description

The BBL series from Samtec Inc. is a header connector designed for board to board applications.

Connector Type: Header
Contacts: 23 Male Pins
Row Count: One
Pitch: 0.100 inches
Contact Finish (Mating): Tin
Contact Finish (Post): Nickel, 50.0 microns
Insulation Material: Liquid Crystal Polymer (LCP), Black
Insulation Height: 0.085 inches
Contact Shape: Circular
Contact Length (Mating): 0.122 inches
Contact Length (Post): 0.125 inches
Shrouding: Unshrouded
Temperature Range: -55 degrees Celsius to 125 degrees Celsius
Manufacturer: Samtec Inc.
