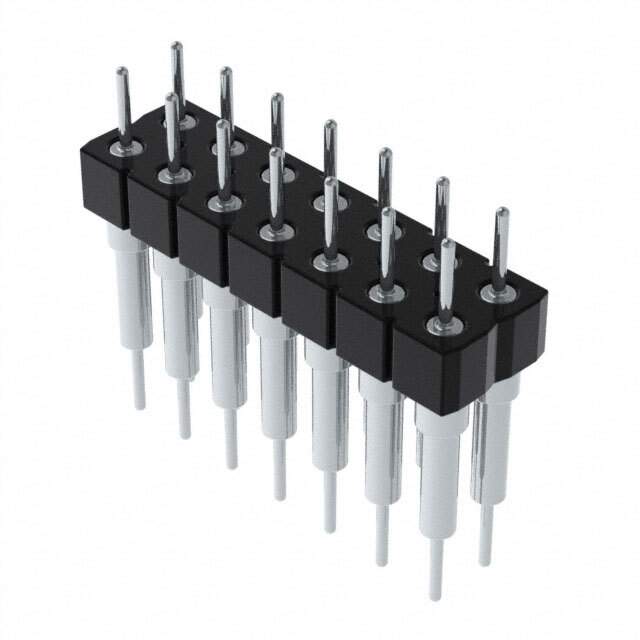

Same model may have multiple batches, images only for reference.

BBD-107-T-B

Name: BBD-107-T-B
Brand: Samtec Inc.
SKU: 1176650
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	BBD-107-T-B
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Datasheet	BBD-107-T-B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	BBD
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.125" (3.18mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.585" (14.86mm)
Insulation Height	0.335" (8.51mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Nickel
Insulation Material	Polyester, Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	BBD-107
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	32
Win Source Part Number	1176650-BBD-107-T-B
Ultra Librarian 3D Model	Ultra Librarian BBD-107-T-B CAD Model

Description

The BBD series from Samtec Inc. presents the 1176650-BBD-107-T-B, a 14-position header connector for board to board applications.

Fastening Type: Push-Pull
Termination: Solder
Insulation Material: Polyester, Glass Filled
Connector Type: Male Pin
Contact Finish - Mating: Tin
Contact Finish - Post: Nickel with a thickness of 50.0μin (1.27μm)
Row Spacing - Mating: 0.100" (2.54mm)
Overall Contact Length: 0.585" (14.86mm)
Insulation Height: 0.335" (8.51mm)
Temperature Range: -55°C to 125°C
