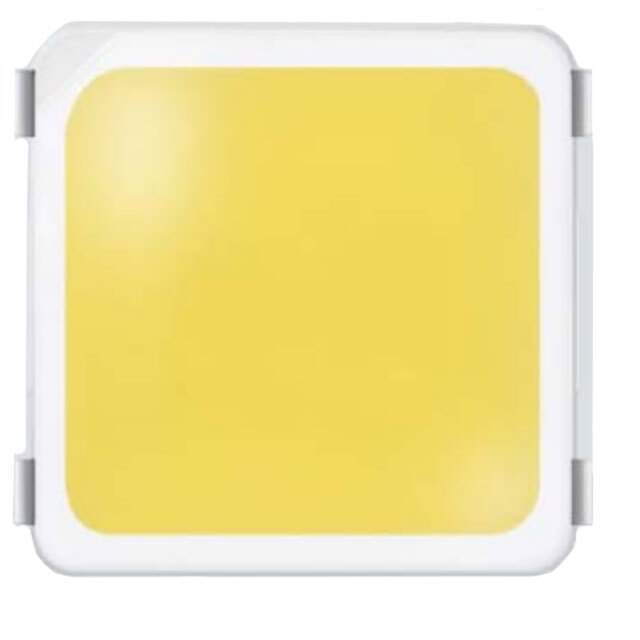

SPMWHT32BMD7YBV0S0 Real Image
Same model may have multiple batches, images only for reference.

SPMWHT32BMD7YBV0S0

Part No SPMWHT32BMD7YBV0S0
Manufacturer Samsung
Catalog LED Lighting - White
Description LED / LED Lighting series White, Warm 3000K 5.9V 65mA 115° 1212 (3030 Metric)
Datasheet
SPMWHT32BMD7YBV0S0 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LM302C
Product Status Not For New Designs
Color White, Warm
CCT (K) 3000K
Flux @ 25°C, Current - Test 52lm (46lm ~ 58lm)
Current - Test 65mA
Voltage - Forward (Vf) (Typ) 5.9V
Lumens/Watt @ Current - Test 136 lm/W
CRI (Color Rendering Index) 90
Current - Max 150mA
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1212 (3030 Metric)
Supplier Device Package 3030
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.033" (0.85mm)
Thermal Resistance of Package 8°C/W
Base Product Number SPMWHT32
Other Names 1510-2421-1,SPMWHT32BMD7YBV0S0,1510-2421-2,1510-2421-6
Standard Package 4,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238630-SPMWHT32BMD7YBV0S0
Ultra Librarian 3D Model Ultra Librarian SPMWHT32BMD7YBV0S0 CAD Model

Description

The SPMWHT32BMD7YBV0S0 is a white warm LED lighting product manufactured by Samsung Semiconductor, Inc.

  • Forward Voltage: 5.9V
  • Maximum Current: 150mA
  • CCT: 3000K
  • Luminous Flux: 52lm @ 25°C
  • Package: 1212 package with a dimension of 0.118" L x 0.118" W
  • Use: Ideal for use in various applications such as backlighting, signage, and automotive lighting.
  • RoHS Compliant: Yes
  • MSL Level: 2A
