Same model may have multiple batches, images only for reference.

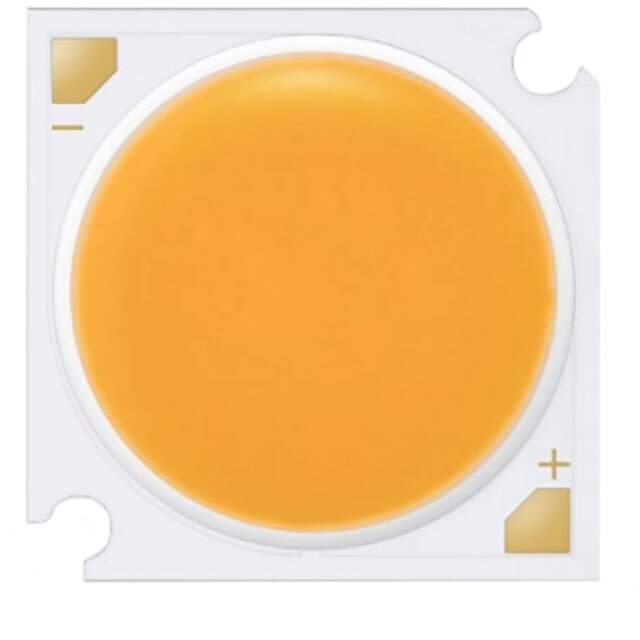

SPHWHAHDNM231ZT3D3 Real Image
Same model may have multiple batches, images only for reference.

SPHWHAHDNM231ZT3D3

Part No SPHWHAHDNM231ZT3D3
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB D 4000K SQUARE / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Square
Datasheet
SPHWHAHDNM231ZT3D3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series COB D Gen3
Package Tray
Product Status Not For New Designs
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 14376lm (Typ)
Current - Test 1.62A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 51V
Lumens/Watt @ Current - Test 174 lm/W
Current - Max 4.14A
CRI (Color Rendering Index) 70
Viewing Angle 115°
Dimension 28.00mm L x 28.00mm W
Height 1.50mm
Light Emitting Surface (LES) 22.00mm Dia
Lens Type Flat
Base Product Number SPHWHAHDNM231
Standard Package 320
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241315-SPHWHAHDNM231ZT3D3
Ultra Librarian 3D Model Ultra Librarian SPHWHAHDNM231ZT3D3 CAD Model

Description

The Samsung Semiconductor, Inc. COB D Gen3 LED Lighting is a high-quality electronic component designed to meet all your requirements.

  • Win Source Part Number: 1241315-SPHWHAHDNM231ZT3D3
  • Category: Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
  • Type: Chip On Board (COB)
  • Configuration: Square
  • Color: White, Neutral
  • Viewing Angle: 115°
  • Voltage - Forward (Vf) (Typ): 51V
  • Current - Test: 1.62A
  • CCT (K): 4000K 3-Step MacAdam Ellipse
  • Lumens/Watt @ Current - Test: 174 lm/W
  • CRI (Color Rendering Index): 70
  • Temperature - Test: 85°C
  • Light Emitting Surface (LES): 22.00mm Dia
  • Dimension: 28.00mm L x 28.00mm W
  • Package: Tray
  • Standard Package: 320
  • MSL Level: 2A (4 Weeks)
  • HTSUS: 8541.41.0000
  • Base Product Number: SPHWHAHDNM231
  • Product Status: Not For New Designs
  • Luminous Flux @ Current/Temperature: 14376lm (Typ)
