Same model may have multiple batches, images only for reference.

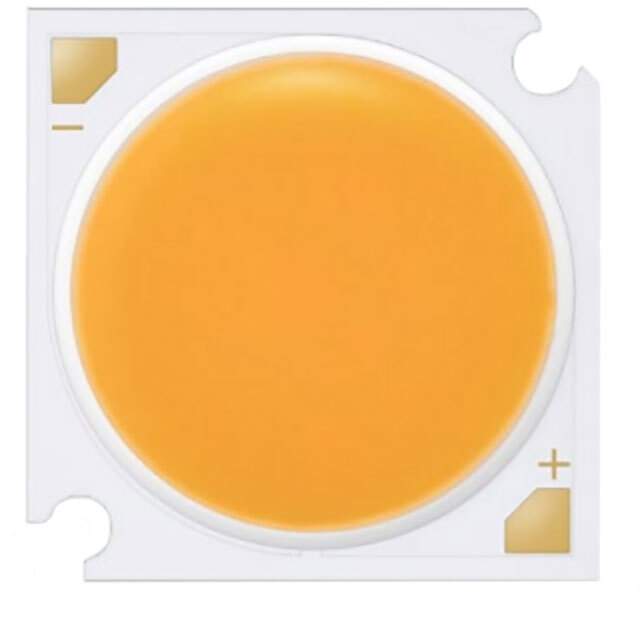

SPHWHAHDNC27YZU3DB Real Image
Same model may have multiple batches, images only for reference.

SPHWHAHDNC27YZU3DB

Part No SPHWHAHDNC27YZU3DB
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT LC009D 3500K 90CRI / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
SPHWHAHDNC27YZU3DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series COB D Gen2
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1257lm (Typ)
Current - Test 270mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34V
Lumens/Watt @ Current - Test 137 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 90
Viewing Angle 115°
Dimension 13.50mm L x 13.50mm W
Height 1.50mm
Light Emitting Surface (LES) 9.80mm Dia
Lens Type Flat
Base Product Number SPHWHAHDNC27
Other Names 1510-SPHWHAHDNC27YZU3DB
Standard Package 500
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241491-SPHWHAHDNC27YZU3DB
Ultra Librarian 3D Model Ultra Librarian SPHWHAHDNC27YZU3DB CAD Model

Description

The Samsung COB D Gen2 chip on board (COB) is a high-quality optoelectronic component designed for LED lighting applications.

  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • Configuration: Square
  • Color: White and warm
  • Voltage-Forward (Vf): 34V
  • Current-Max: 540mA
  • CCT: 3500K 3-Step MacAdam Ellipse
  • CRI: 90
  • Temperature-Test: 85 degrees Celsius
  • Light Emitting Surface (LES): 9.80mm in diameter
  • Dimension: 13.50mm L x 13.50mm W
  • Luminous Flux: 1257lm (Typ) @ current/temperature
  • Lumens/Watt @ current-test: 137 lm/W
