Same model may have multiple batches, images only for reference.

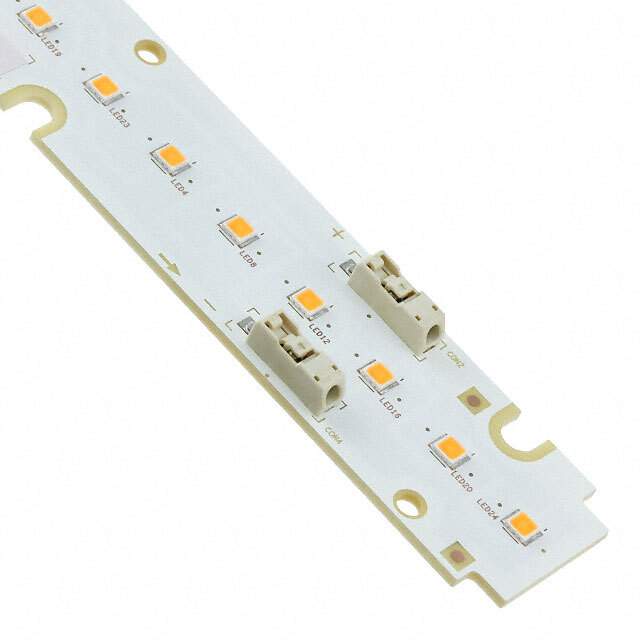

SL-B8T1N40L1WW Real Image
Same model may have multiple batches, images only for reference.

SL-B8T1N40L1WW

Part No SL-B8T1N40L1WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD INFLUXS02 NEU WHT STRIP / LED Lighting COBs Engines Modules LED Module series White, Neutral Linear Light Strip
Datasheet
SL-B8T1N40L1WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series inFlux_S02
Package Tray
Product Status Obsolete
Type LED Module
Color White, Neutral
CCT (K) 4000K
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 2270lm (Typ)
Current - Test 1.38A
Temperature - Test 65°C
Voltage - Forward (Vf) (Typ) 12.1V
Lumens/Watt @ Current - Test 136 lm/W
Current - Max 1.38A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 279.60mm L x 23.70mm W
Height 5.90mm
Lens Type Flat
Other Names 1510-1347
Standard Package 224
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241165-SL-B8T1N40L1WW
Ultra Librarian 3D Model Ultra Librarian SL-B8T1N40L1WW CAD Model

Description

The Samsung LED Module is an obsolete electronic component that is designed for use in a variety of lighting applications.

  • Configuration: Linear light strip
  • Color: White, Neutral
  • Lens Type: Flat
  • Package: Tray
  • Standard Package: 224
  • Viewing Angle: 115 degrees
  • Voltage-Forward (Vf): 12.1V
  • Current-Maximum: 1.38A
  • Lumens per Watt @ Current-Test: 136 lm/W
  • MSL Level: Not applicable
  • ECCN: EAR99
  • HTSUS Code: 8541.41.0000
