Same model may have multiple batches, images only for reference.

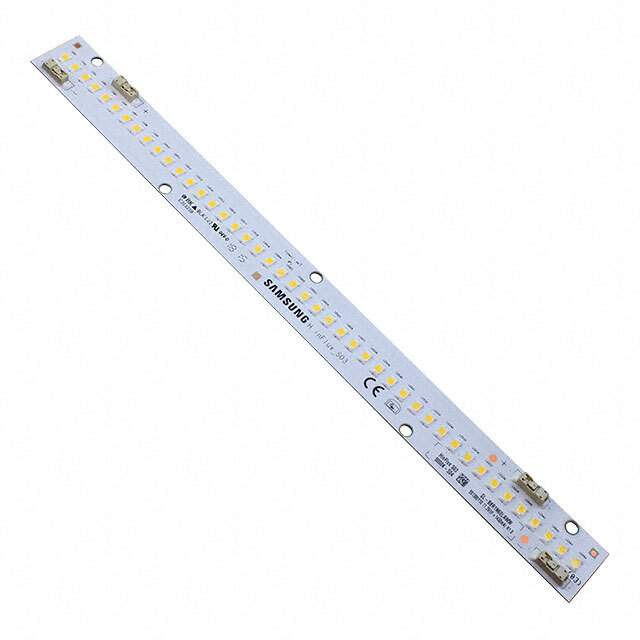

SL-B8T1N30LAWW Real Image
Same model may have multiple batches, images only for reference.

SL-B8T1N30LAWW

Part No SL-B8T1N30LAWW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED / LED Lighting COBs Engines Modules LED Module series White, Neutral Linear Light Strip
Datasheet
SL-B8T1N30LAWW Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series H inFlux
Package Tray
Type LED Module
Color White, Neutral
CCT (K) 4000K
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 2140lm (Typ)
Current - Test 1A
Temperature - Test 55°C
Voltage - Forward (Vf) (Typ) 11.1V
Lumens/Watt @ Current - Test 193 lm/W
Current - Max 1.6A
CRI (Color Rendering Index) 80
Viewing Angle 118°
Dimension 280.00mm L x 24.00mm W
Height 5.20mm
Lens Type Flat
Base Product Number SL-B8T1
Other Names SL-B8T1N30LAWW,1510-2456
Standard Package 256
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241186-SL-B8T1N30LAWW
Ultra Librarian 3D Model Ultra Librarian SL-B8T1N30LAWW CAD Model

Description

The H inFlux LED module is a linear light strip that is ideal for LED lighting applications.

  • Maximum Current: 1.6A
  • Viewing Angle: 118 degrees
  • Forward Voltage: 11.1V
  • Colors: White and neutral
  • CCT: 4000K
  • Lens Type: Flat
  • Height: 5.20mm
  • Luminous Flux: 2140lm (Typ) @ a test current of 1A
  • Lumens/Watt: 193 lm/W
  • CRI: 80
  • Temperature Test: 55 degrees Celsius
  • Manufacturer: Samsung Semiconductor, Inc.
  • Package: Tray
  • Standard Package: 256 units
