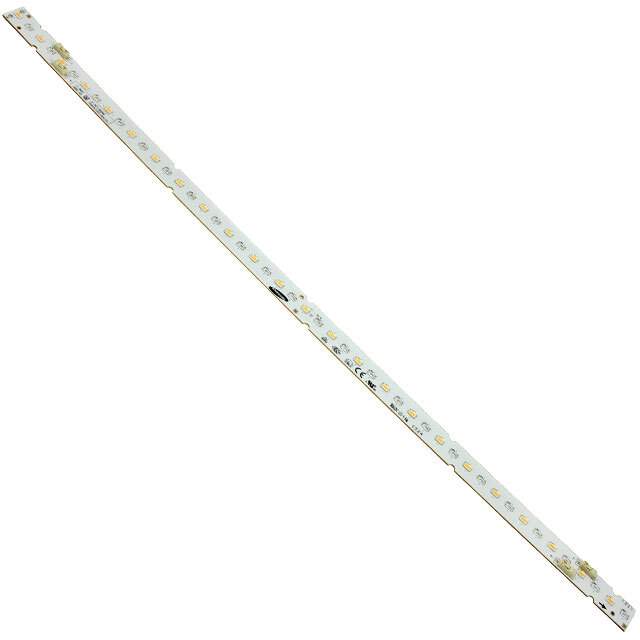

SI-B9W111560WW Real Image
Same model may have multiple batches, images only for reference.

SI-B9W111560WW

Part No SI-B9W111560WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED 2700K 90CRI LM561B / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SI-B9W111560WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-M562F
Package Tray
Product Status Obsolete
Type LED Module
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1020lm (Typ)
Current - Test 450mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 24.7V
Lumens/Watt @ Current - Test 92 lm/W
Current - Max 450mA
CRI (Color Rendering Index) 90
Viewing Angle 115°
Dimension 560.00mm L x 18.00mm W
Height 5.80mm
Lens Type Flat
Other Names 1510-1207
Standard Package 280
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1240423-SI-B9W111560WW
Ultra Librarian 3D Model Ultra Librarian SI-B9W111560WW CAD Model

Description

The Samsung LT-M562F LED module is a white, warm optoelectronic component that is perfect for LED lighting applications.

  • Maximum Current Rating: 450mA
  • Viewing Angle: 115 degrees
  • Forward Voltage: 24.7V
  • CCT: 2700K 3-Step MacAdam Ellipse
  • Luminous Flux: 1020lm (Typ) @ 50°C
  • Package Size: 560.00mm L x 18.00mm W
  • Height: 5.80mm
  • Configuration: linear light strip
  • Packaging: tray
