Same model may have multiple batches, images only for reference.

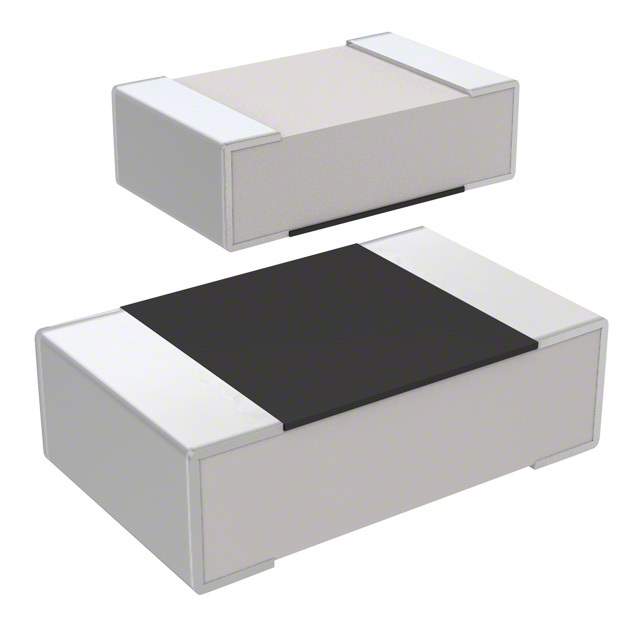

RC2012F114CS Real Image
Same model may have multiple batches, images only for reference.

RC2012F114CS

Part No RC2012F114CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES SMD 110K OHM 1% 1/8W 0805  /  110 kOhms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thick Film
Datasheet
RC2012F114CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel
Resistance 110 kOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1276-5396-6,1276-5396-1,1276-5396-2
Standard Package 5,000
Win Source Part Number 1112341-RC2012F114CS
Ultra Librarian 3D Model Ultra Librarian RC2012F114CS CAD Model

Description

The RC series from Samsung Electro-Mechanics features a 110 kOhms chip resistor with a tolerance of ±1% and a temperature coefficient of ±100ppm/°C.

  • Resistance: 110 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W (1/8W)
  • Composition: Thick film
  • Package: Tape and reel
  • Height: 0.026 inches (0.65mm) when seated
  • Terminations: Two
  • Size: 0805 (2012 Metric)
  • Dimension: 0.079 inches (2.00mm) in length and 0.049 inches (1.25mm) in width
  • Operating Temperature Range: -55°C to 155°C
