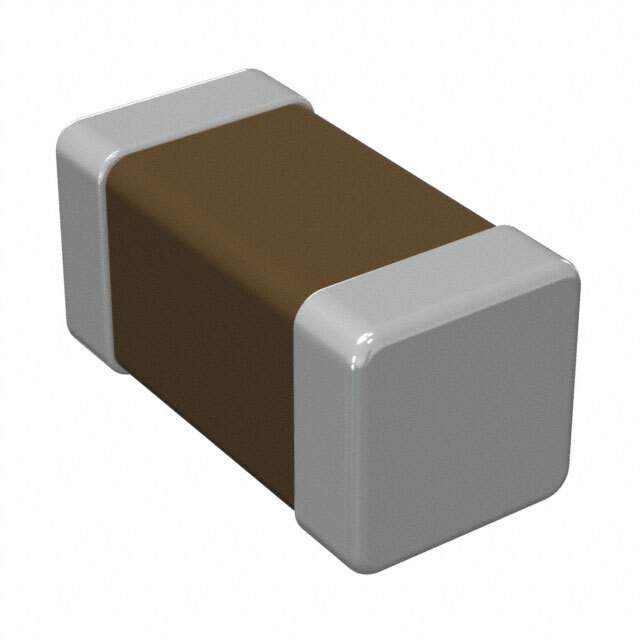

CIGT160808XMR24MNC Real Image
Same model may have multiple batches, images only for reference.

CIGT160808XMR24MNC

Part No CIGT160808XMR24MNC
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 240NH 4.9A 24 MOHM SMD / 240 nH Shielded Thin Film Inductor 4.9 A 24mOhm Max 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Samsung Electro-Mechanics
Series CIGT
Package Tape & Reel
Type Thin Film
Material - Core Metal Composite
Inductance 240 nH
Tolerance ±20%
Current Rating (Amps) 4.9 A
Current - Saturation (Isat) 4.1A
Shielding Shielded
DC Resistance (DCR) 24mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1338538-CIGT160808XMR24MNC
Ultra Librarian 3D Model Ultra Librarian CIGT160808XMR24MNC CAD Model

Description

The Samsung Electro-Mechanics CIGT160808XMR24MNC is a fixed inductor with an inductance of 240 nH.

  • Inductance: 240 nH
  • Shielding: Shielded
  • Height: 0.031" (0.80mm)
  • Tolerance: ±20%
  • Material: Metal Composite
  • Mounting Type: Surface Mountable
  • Package/Case: 0603 (1608 Metric)
  • Maximum DC Resistance: 24mOhm
  • Current Rating: 4.9 A
  • Operating Temperature: -40°C ~ 125°C
  • Standard Package: 4,000
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
