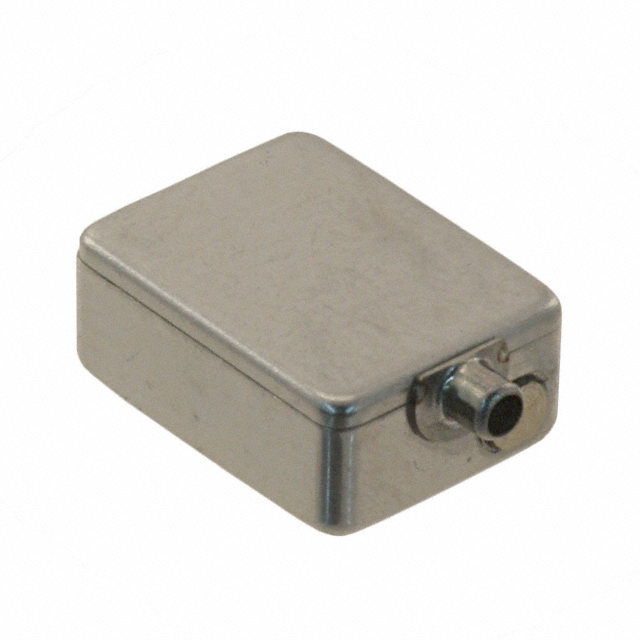

CPE-503 Same Sky – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CPE-503

Part No CPE-503
Manufacturer Same Sky
Catalog Alarms, Buzzers, and Sirens
Description BUZZER PIEZO 12V 24X10MM TH
Datasheet
CPE-503 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Driver Circuitry Transducer, Externally Driven
Input Type DC
Voltage - Rated 12 V
Voltage Range 3 ~ 28V
Frequency 3.2kHz
Technology Piezo (with Feedback)
Operating Mode Single Tone
Sound Pressure Level (SPL) 72dB @ 12V, 30cm
Current - Supply 7mA
Port Location Side
Temperature Range - Operating -30°C ~ 115°C
Mounting Type Through Hole
Termination PC Pins
Size / Dimension 0.945" L x 0.394" W (24.00mm x 10.00mm)
Height - Seated (Max) 1.004\
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1547202-CPE-503
Ultra Librarian 3D Model Ultra Librarian CPE-503 CAD Model
