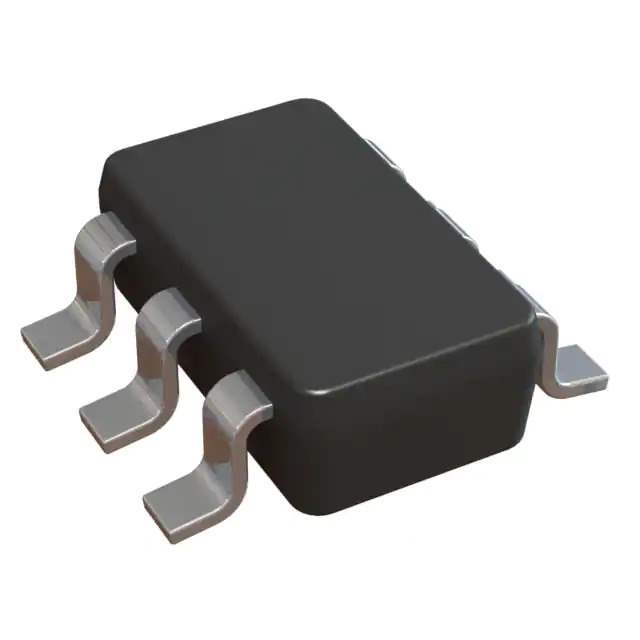

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Comparators
Mfr Runic Technology
Package Tape & Reel
Product Status Active
Type CMOS
Number of Elements 1
Output Type CMOS, Push-Pull, Rail-to-Rail
Voltage - Supply, Single/Dual (±) 1.4V ~ 5.5V
Voltage - Input Offset (Max) 3mV @ 5V
Current - Input Bias (Max) 10pA @ 5.5V
Current - Output (Typ) 42mA @ 5V
Current - Quiescent (Max) 1.5µA
CMRR, PSRR (Typ) 70dB CMRR, 70dB PSRR
Propagation Delay (Max) 13µs (Typ)
Temperature Range - Operating -40°C ~ 125°C
Package / Case SC-74A, SOT-753
Mounting Type Surface Mount
Supplier Device Package SOT-23-5
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 849920-RS8901XF
Ultra Librarian 3D Model Ultra Librarian RS8901XF CAD Model

Description

The CMOS Comparator is an integrated circuit used for voltage comparison applications. Manufactured by Runic Technology, this comparator operates with a single/dual voltage supply of 1.4V to 5.5V.

  • Voltage Supply: 1.4V to 5.5V (Single/Dual)
  • Output Type: CMOS, Push-Pull, Rail-to-Rail
  • Comparator Count: 1
  • Quiescent Current (Max): 1.5μA
  • Voltage Input Offset: 3mV @ 5V
  • Output Current: 42mA @ 5V
  • Temperature Range: -40°C to 125°C
  • Package: SC-74A, SOT-753
  • Package Quantity: 3,000 pieces
