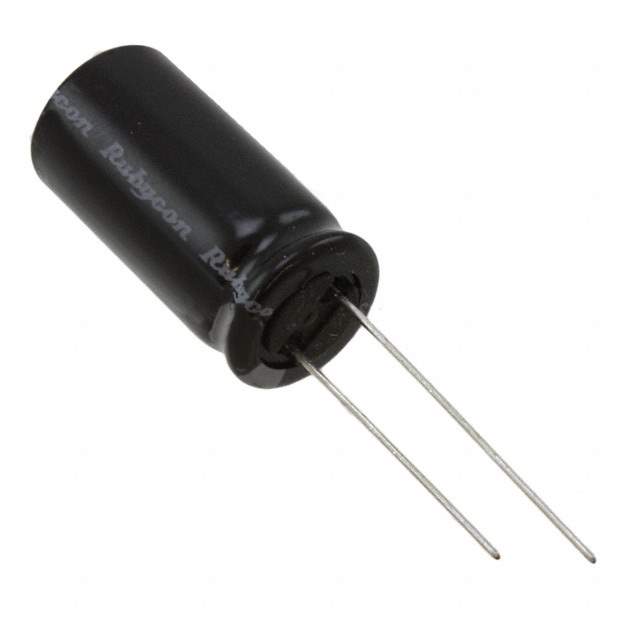

63YXJ470M12.5X25 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.493 A @ 120 Hz
Ripple Current @ High Frequency 1.99 A @ 100 kHz
Impedance 43 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1501,63YXJ470M125X25
Standard Package 1,000
Win Source Part Number 1133578-63YXJ470M12.5X25
Ultra Librarian 3D Model Ultra Librarian 63YXJ470M12.5X25 CAD Model

Description

The Rubycon 1133578-63YXJ470M12.5X25 Capacitor is a high-quality aluminum electrolytic capacitor that is perfect for general-purpose applications. With a capacitance of 470 µF and a voltage rating of 63 V, this capacitor is capable of delivering reliable performance.

  • Manufacturer: Rubycon
  • Application: General Purpose
  • Capacitance: 470 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Impedance: 43 mOhms
  • ESR: -
  • Lifetime: 10000 Hrs @ 105°C
  • Polarization: Polarized
  • Operating Temperature: -40°C to 105°C
  • Package/Case: Radial, Can
  • Surface Mount Land Size: -
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Dimensions: 0.492" Dia (12.50mm)
