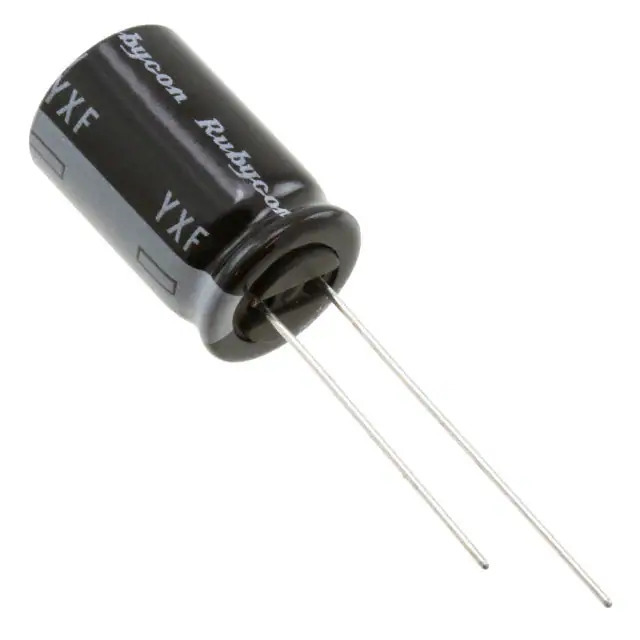

Same model may have multiple batches, images only for reference.
63YXF470MEFCG412.5X25 Rubycon
Same model may have multiple batches, images only for reference.

63YXF470MEFCG412.5X25

Part No 63YXF470MEFCG412.5X25
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 63V RADIAL / 470 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Tape & Box (TB)
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 562.5 mA @ 120 Hz
Ripple Current @ High Frequency 750 mA @ 100 kHz
Impedance 120 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1377549-63YXF470MEFCG412.5X25
Ultra Librarian 3D Model Ultra Librarian 63YXF470MEFCG412.5X25 CAD Model

Description

The Rubycon YXF series is a general-purpose aluminum electrolytic capacitor suitable for various applications.

  • Capacitance: 470 µF
  • Voltage Rating: 63 V
  • Temperature Range: -40°C to 105°C
  • Lifetime: 10000 hours @ 105°C
  • Package: Radial, can
  • Mounting Type: Through-hole
  • Diameter: 0.492" (12.50mm)
  • Height: 1.063" (27.00mm)
  • Ripple Current (Low Frequency): 562.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 750 mA @ 100 kHz
