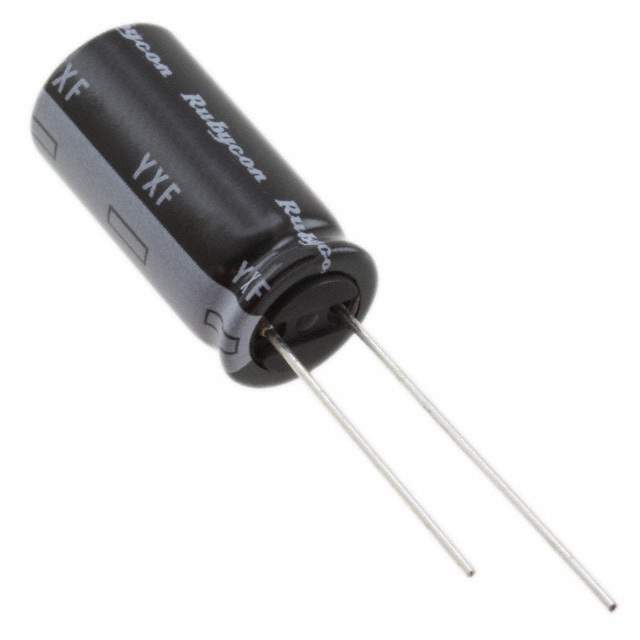

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 364 mA @ 120 Hz
Ripple Current @ High Frequency 520 mA @ 100 kHz
Impedance 210 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 63YXF220MEFC10X20-ND,1189-4227
Standard Package 1,000
Win Source Part Number 1330510-63YXF220MEFC10X20
Ultra Librarian 3D Model Ultra Librarian 63YXF220MEFC10X20 CAD Model

Description

This aluminum electrolytic capacitor from Rubycon is a high-quality component that is perfect for general purpose applications.

  • Application: General Purpose
  • Capacitance: 220 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Mounting Style: Through-Hole
  • Package: Radial Can
  • Height Seated: 0.866" (22.00mm)
  • Lead Spacing: 0.197" (5.00mm)
  • ESR: Not Specified
  • Impedance: 210 mOhms
  • Ripple Current (Low Frequency): 364 mA @ 120 Hz
  • Ripple Current (High Frequency): 520 mA @ 100 kHz
  • Lifetime @ Temperature: 7000 hours @ 105°C
  • ROHS3 Compliant: Yes
  • Packaging: Bulk
