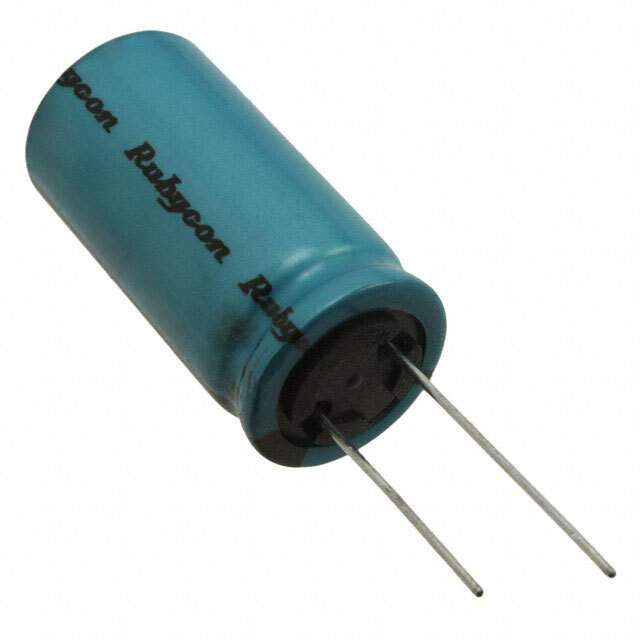

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series RX30
Packaging Bulk
Capacitance 3300μF
Tolerance ±20%
Voltage Rating DC 35V
Lifetime @ Temp. 4000 Hrs @ 130°C
Operating Temperature Range -40°C ~ 130°C
Polarization Polar
Applications Automotive
Ripple Current - Low Frequency 2.24A @ 120Hz
Ripple Current - High Frequency 2.8A @ 100kHz
Impedance 28 mOhm
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Maximum) 1.476" (37.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777853-35RX303300M18X35.5
Popularity Medium
Supply and Demand Status Limited
Family Name RX30
Introduction Date September 15, 2009
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 35RX303300M18X35.5 CAD Model

Description

The Rubycon RX30 series is a radial, can type capacitor with a capacitance of 3300μF and a voltage rating of 35V DC. It has a tolerance of ±20% and lead spacing of 0.295" (7.50mm).

  • Capacitance: 3300μF
  • Voltage Rating (DC): 35V
  • Tolerance: ±20%
  • Lead Spacing: 0.295" (7.50mm)
  • Impedance: 28 mOhm
  • Ripple Current @ 120Hz: 2.24A
  • Ripple Current @ 100kHz: 2.8A
  • Polarized: Yes
  • Lifespan: 4000 hours @ 130°C
  • Suitable For: Automotive applications
  • Country of Origin: Japan
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
