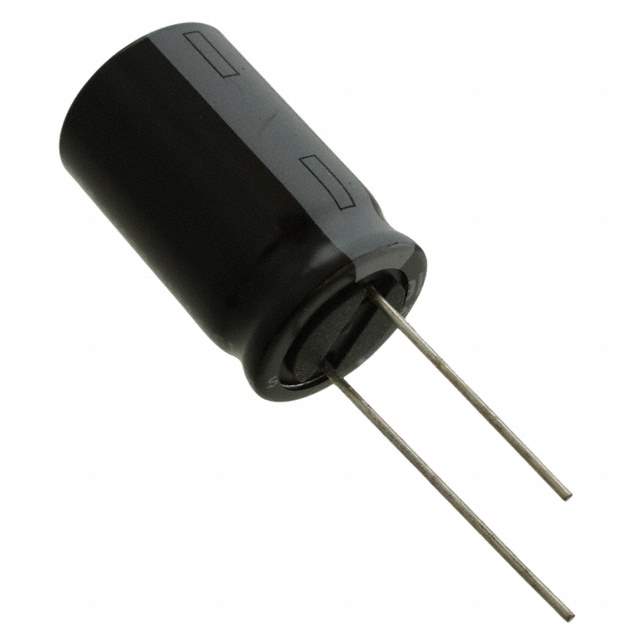

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 4700 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.8 A @ 120 Hz
Ripple Current @ High Frequency 2.07 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 600
Win Source Part Number 983672-25PX4700MEFC16X25
Ultra Librarian 3D Model Ultra Librarian 25PX4700MEFC16X25 CAD Model

Description

The Rubycon PX series aluminum electrolytic capacitor is a through-hole component designed for general purpose applications.

  • Capacitance: 4700µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Dimensions: 0.630" Dia (16.00mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Height Seated (max): 1.063" (27.00mm)
  • ESR: Not specified
  • Polarization: Polar
  • Mounting Type: Through-hole radial, can package
  • Temperature Range: -55°C to 105°C
  • Application: General purpose applications
