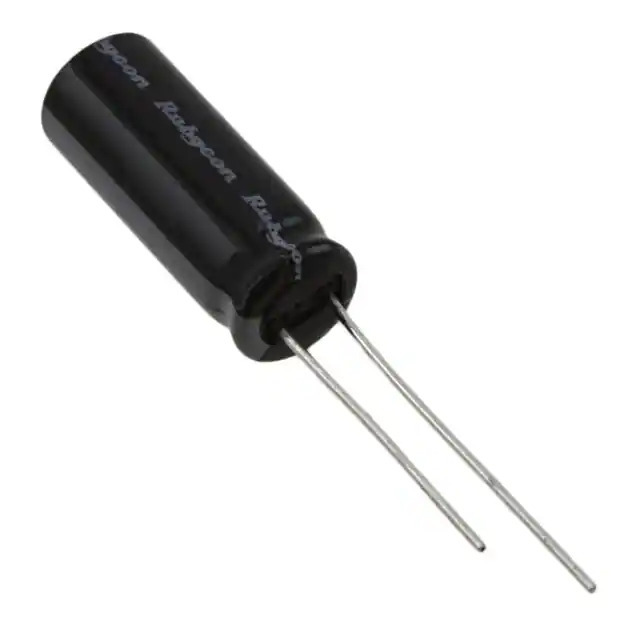

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLJ
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.176 A @ 120 Hz
Ripple Current @ High Frequency 1.96 A @ 100 kHz
Impedance 41 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358159-16ZLJ1000M8X20
Ultra Librarian 3D Model Ultra Librarian 16ZLJ1000M8X20 CAD Model

Description

The Rubycon 1358159-16ZLJ1000M8X20 is a high-quality aluminum electrolytic capacitor designed for general-purpose applications. It has a capacitance of 1000μF and a voltage rating of 16V.

  • Capacitance: 1000μF
  • Voltage Rating: 16V
  • Series: ZLJ
  • Tolerance: ±20%
  • Ripple Current (120Hz): 1.176A
  • Ripple Current (100kHz): 1.96A
  • Diameter: 0.315"
  • Height: 0.866"
  • Mounting Type: Through-Hole
  • Lifetime: 10000 hours @ 105°C
  • Package: Radial, Can
  • HTSUS Code: 8532.22.0020
