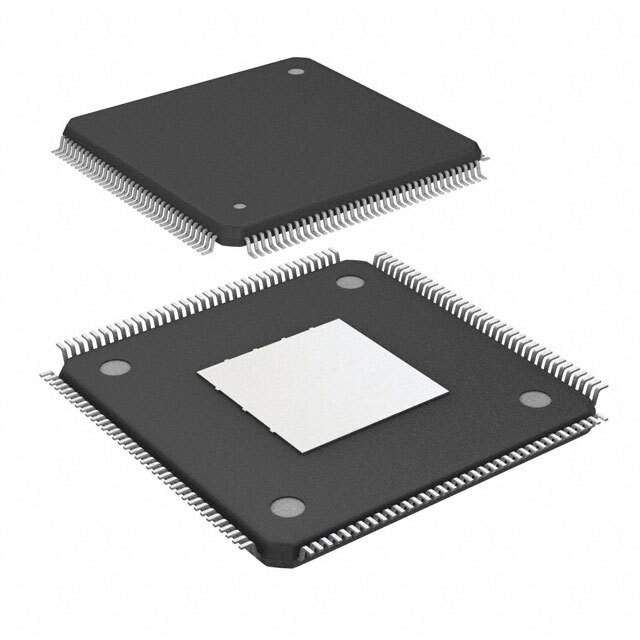

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Cyclone IV E
Number of LABs/CLBs 1395
Number of Logic Elements/Cells 22320
Total RAM Bits 608256
Number of I/O 79
Operating Supply Voltage 1.15 V ~ 1.25 V
Mounting SMD
Operating Temperature Range -40°C ~ 125°C (TJ)
Package 144-LQFP Exposed Pad
Manufacturer Package 144-EQFP (20x20)
Win Source Part Number 773964-EP4CE22E22A7N
Popularity Medium
Supply and Demand Status Limited
Family Name EP4CE22
Introduction Date April 24, 2003
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EP4CE22E22A7N CAD Model

Description

The Altera Cyclone IV E EP4CE22E22A7N is a field-programmable gate array (FPGA) that offers 22320 logic elements/cells and 608256 total RAM bits.

  • Operating Supply Voltage: 1.15 V to 1.25 V
  • I/O Pins: 79
  • Package: 144-LQFP Exposed Pad
  • Operating Temperature: -40°C to 125°C (TJ)
  • Family: EP4CE22
  • Category: Integrated Circuits (ICs)
  • Supply and Demand Status: Limited
