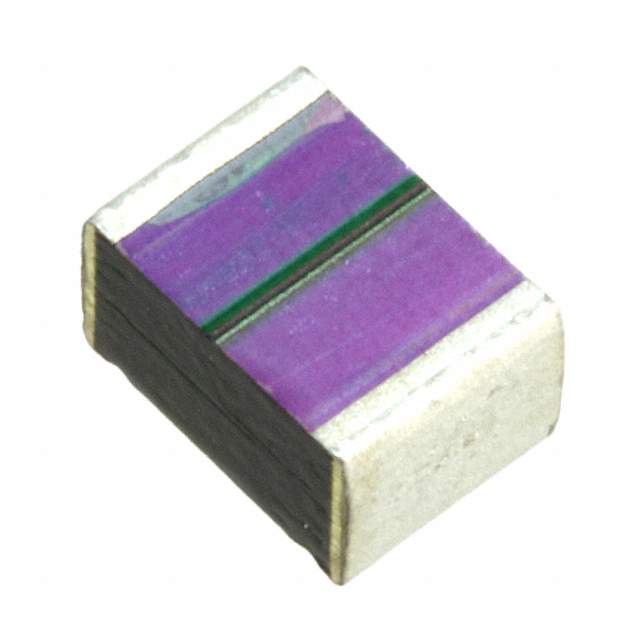

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Rubycon
Series PMLCAP®, ST
Package Tape & Reel
Product Status Obsolete
Capacitance 10 µF
Tolerance ±20%
Voltage Rating - DC 16V
Dielectric Material Acrylic, Metallized
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.102" (2.60mm)
Termination Solder Pads
Applications DC Link, DC Filtering
MSL Level 5 (48 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0045
Other Names 1189-1792-6,1189-1792-2,1189-1792-1
Standard Package 200
Win Source Part Number 994976-16ST106MC44532
Ultra Librarian 3D Model Ultra Librarian 16ST106MC44532 CAD Model

Description

This electronic component is a film capacitor that has a Win Source Part Number of 994976-16ST106MC44532.

  • Category: Capacitors
  • Series: PMLCAP® and ST
  • Capacitance: 10 µF
  • Tolerance: ±20%
  • Voltage Rating: 16V
  • Application: DC link and DC filtering
  • Package Size: 1812 (4532 Metric)
  • Mounting Type: surface mount
  • Temperature Range: -55°C to 125°C
  • Manufacturer: Rubycon
