Same model may have multiple batches, images only for reference.

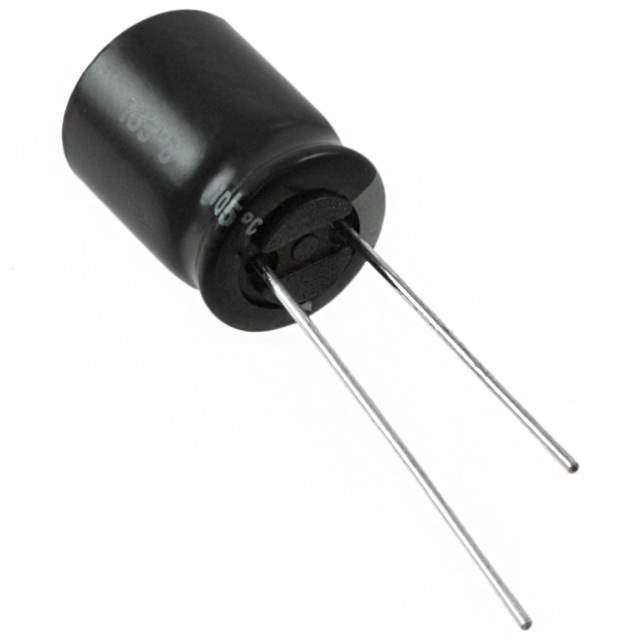

10ZL4700MEFC12.5X35 Real Image
Same model may have multiple batches, images only for reference.

10ZL4700MEFC12.5X35

Part No 10ZL4700MEFC12.5X35
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 10V RADIAL / 4700 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZL
Package Bulk
Capacitance 4700 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.38 A @ 120 Hz
Ripple Current @ High Frequency 3.4 A @ 100 kHz
Impedance 15 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 10ZL4700MEFC12.5X35-ND,1189-3974
Standard Package 600
Win Source Part Number 1126483-10ZL4700MEFC12.5X35
Ultra Librarian 3D Model Ultra Librarian 10ZL4700MEFC12.5X35 CAD Model

Description

The ZL series from Rubycon is an aluminum electrolytic capacitor with a capacitance of 4700 µF and a voltage rating of 10 V.

  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Height Seated (Max): 1.457" (37.00mm)
  • Ripple Current @ Low Frequency: 2.38 A @ 120 Hz
  • Ripple Current @ High Frequency: 3.4 A @ 100 kHz
  • Operating Temperature Range: -40°C to 105°C
