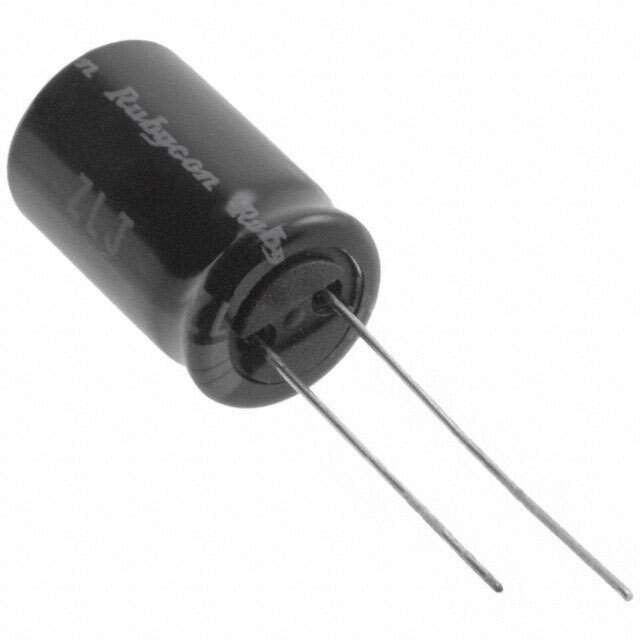

100ZLJ100MG412.5X16 Real Image
Same model may have multiple batches, images only for reference.

100ZLJ100MG412.5X16

Part No 100ZLJ100MG412.5X16
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 100V RADIAL / 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLJ
Package Tape & Box (TB)
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 715 mA @ 120 Hz
Ripple Current @ High Frequency 1.43 A @ 100 kHz
Impedance 110 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1122130-100ZLJ100MG412.5X16
Ultra Librarian 3D Model Ultra Librarian 100ZLJ100MG412.5X16 CAD Model

Description

The Rubycon ZLJ series is a high-quality aluminum electrolytic capacitor that offers a capacitance of 100 µF and a voltage rating of 100 V.

  • Capacitance: 100 µF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • Impedance: 110 mOhms
  • Package: Radial, Can
  • Height: 0.689 inches
  • Diameter: 0.492 inches
  • Polarized: Yes
  • Ripple Current (Low Frequency): 715 mA
  • Ripple Current (High Frequency): 1.43 A
  • Lifetime: 10,000 hours @ 105°C
