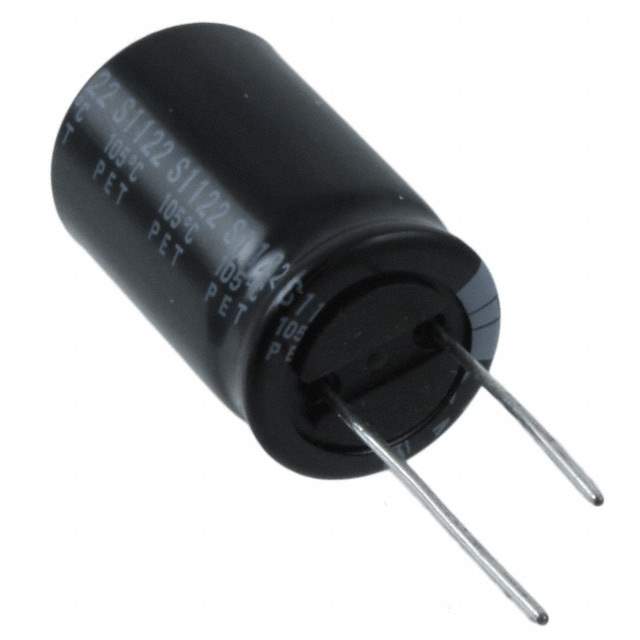

100YXJ330MGC16X25 Real Image
Same model may have multiple batches, images only for reference.

100YXJ330MGC16X25

Part No 100YXJ330MGC16X25
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 100V RADIAL / 330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Cut Tape (CT),Tape & Box (TB)
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.547 A @ 120 Hz
Ripple Current @ High Frequency 2.21 A @ 100 kHz
Impedance 44 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1029-1,1189-1029,1189-1029-3,1189-1029-ND
Standard Package 250
Win Source Part Number 1330251-100YXJ330MGC16X25
Ultra Librarian 3D Model Ultra Librarian 100YXJ330MGC16X25 CAD Model

Description

The 1330251-100YXJ330MGC16X25 is an aluminum electrolytic capacitor produced by Rubycon.

  • Capacitance: 330µF
  • Voltage Rating: 100V
  • Tolerance: ±20%
  • Lead Spacing: 0.295" (7.50mm)
  • Package / Case: Radial, Can
  • Mounting Type: Through Hole
  • Lifetime @ Temp.: 10000 hours @ 105°C
  • Polarization: Polar
  • Temperature Range: -40°C to 105°C
  • ESR (Equivalent Series Resistance): Not Specified
  • Impedance: 44 mOhms
