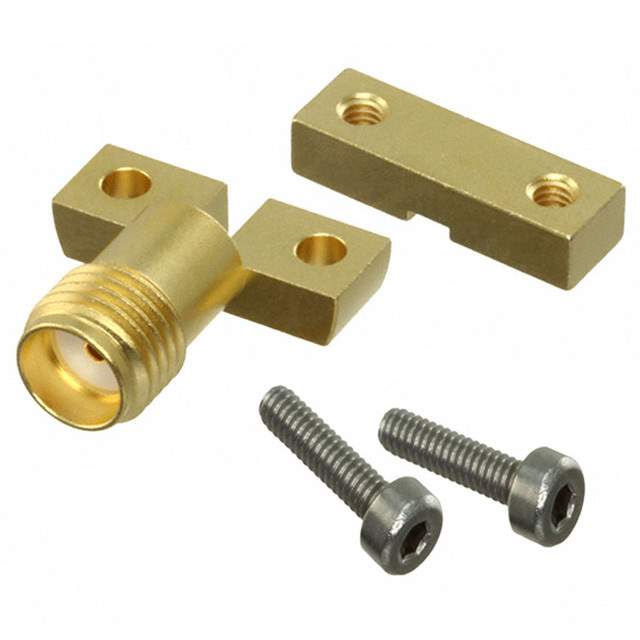

32K243-40ML5 Real Image
Same model may have multiple batches, images only for reference.

32K243-40ML5

Part No 32K243-40ML5
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50OHM EDGE MNT / SMA Connector Jack, Female Socket 50Ohm Board Edge, End Launch Solder
Datasheet
32K243-40ML5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Package Tray
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Screw
Impedance 50Ohm
Mounting Type Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 2 Screws
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 480 V
Mating Cycles 100
Base Product Number 32K243
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 168322,1868-1198
Standard Package 50
Win Source Part Number 1027396-32K243-40ML5
Ultra Librarian 3D Model Ultra Librarian 32K243-40ML5 CAD Model

Description

The 32K243-40ML5 is a female socket jack coaxial connector from Rosenberger.

  • Fastening Type: threaded
  • Package: tray
  • Connector Style: SMA
  • Ports: one
  • Impedance: 50Ohm
  • Voltage Rating: 480V
  • Maximum Frequency: 18 GHz
  • Housing Color: gold
  • Mounting: board edge, end launch
  • Package: DO-214AB (SMCJ)
  • Mounting Technology: SMD (SMT)
  • Shield Termination: screw
  • Body Material: brass
  • Center Contact Material: beryllium copper
  • Center Contact Plating: gold
  • Dielectric Material: polytetrafluoroethylene (PTFE)
  • Temperature Range: -65°C to 165°C
  • Market Status: open market
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4010 compliant
