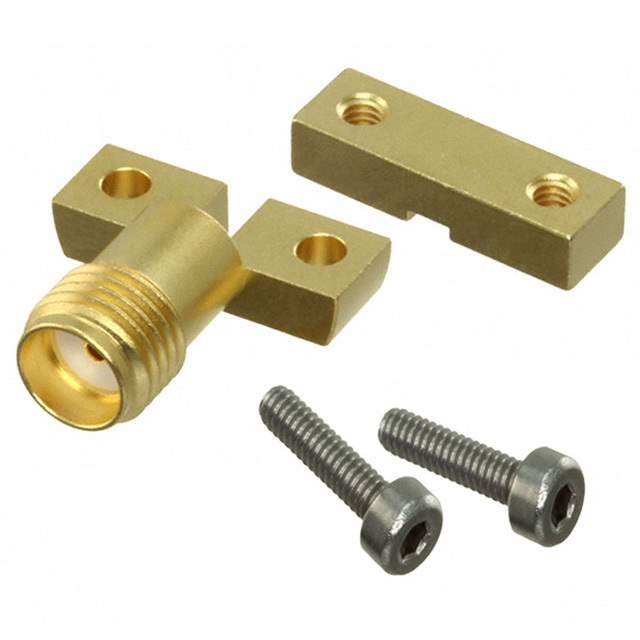

02K243-40ME3 Real Image
Same model may have multiple batches, images only for reference.

02K243-40ME3

Part No 02K243-40ME3
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN RPC2.92 JCK ST 50OHM EDGEMT / 2.92mm Connector Jack, Female Socket 50Ohm Board Edge, End Launch Solder
Datasheet
02K243-40ME3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Rosenberger
Series RPC
Connector Style 2.92mm
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Screw
Impedance 50Ohm
Mounting Type Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 40 GHz
Number of Ports 1
Features Mounting Hardware
Housing Color Gold
Center Contact Material Beryllium Copper
Includes 4 pcs - 1 Connector, 1 Clamp, 2 Screws
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polyetheretherketone (PEEK) ; Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -40°C ~ 85°C
Voltage Rating 250 V
Mating Cycles 500
Base Product Number 02K243
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1340126-02K243-40ME3
Ultra Librarian 3D Model Ultra Librarian 02K243-40ME3 CAD Model

Description

The RPC coaxial connector (RF) assembly is a female socket jack that has mounting hardware features.

  • Mounting Feature: Threaded
  • Voltage Rating: 250V
  • Frequency: Up to 40 GHz
  • Color: Gold
  • Number of Ports: 1
  • Impedance: 50Ohm
  • Mounting Type: Board Edge or End Launch
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Rosenberger
  • Components: 1 connector, 1 clamp, and 2 screws (4 pieces)
