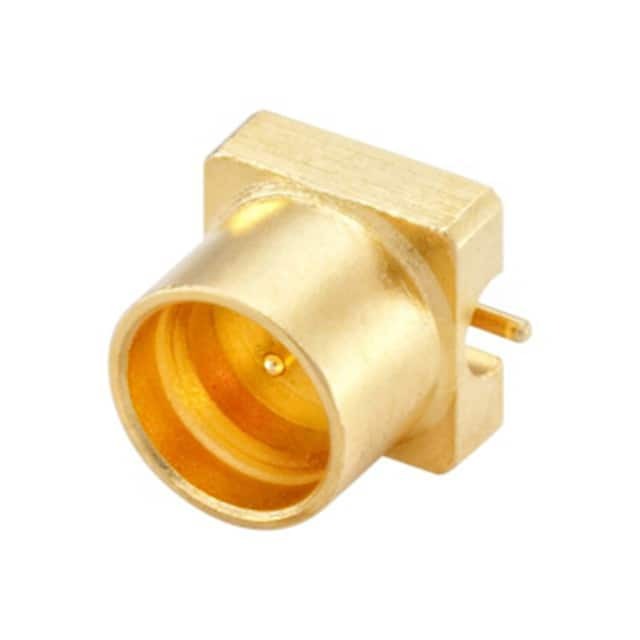

19S102-40ML5
Same model may have multiple batches, images only for reference.

19S102-40ML5

Part No 19S102-40ML5
Manufacturer Rosenberger Hochfrequenztechnik GmbH & Co. KG
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMP PLUG STR 50OHM SMD
Datasheet
19S102-40ML5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Rosenberger Hochfrequenztechnik GmbH & Co. KG
Package Tray
Product Status Active
Connector Style SMP
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount
Fastening Type Snap-On
Frequency - Max 40 GHz
Number of Ports 1
Features Limited Detent
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Temperature Range - Operating -65°C ~ 155°C
Voltage Rating 335 V
Mating Cycles 500
Base Product Number 19S102
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 854278-19S102-40ML5
Ultra Librarian 3D Model Ultra Librarian 19S102-40ML5 CAD Model

Description

The 854278-19S102-40ML5 is a coaxial connector assembly from Rosenberger Hochfrequenztechnik GmbH & Co. KG.

  • Application: RF
  • Feature: Limited Detent
  • Connector Type: Plug
  • Contact Gender: Male Pin
  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Voltage Rating: 335 V
  • Maximum Frequency: 40 GHz
  • Impedance: 50 Ohms
  • Housing Color: Gold
  • Packaging: Tray
  • Standard Package: 100 pieces
  • Product Status: Active
  • MSL Level: 1 (Unlimited)
