Same model may have multiple batches, images only for reference.

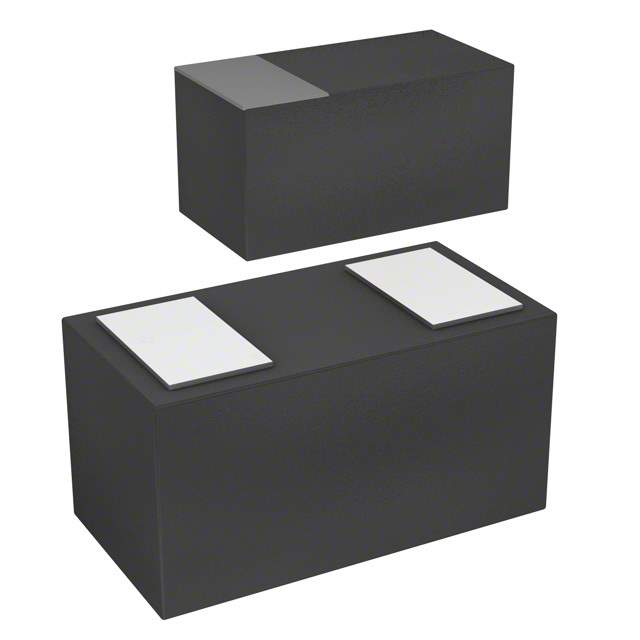

VS5V0BN1HST15R Real Image
Same model may have multiple batches, images only for reference.

VS5V0BN1HST15R

Part No VS5V0BN1HST15R
Manufacturer Rohm Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 5VWM 18VC DSN0603-2 / 18V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2, SOD-962, SMD0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Rohm Semiconductor
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 18V
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power - Peak Pulse 36W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2, SOD-962, SMD0603
Base Product Number VS5V0
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 846-VS5V0BN1HST15RDKR,846-VS5V0BN1HST15RTR,846-VS5V0BN1HST15RCT
Standard Package 15,000
Win Source Part Number 1104202-VS5V0BN1HST15R
Ultra Librarian 3D Model Ultra Librarian VS5V0BN1HST15R CAD Model

Description

The VS5V0BN1HST15R is a TVS diode used for general purpose applications.

  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 6V
  • Clamping Voltage: 18V
  • Peak Pulse Power: 36W
  • Channel: bidirectional
  • Package: tape and reel
  • Pitch: 0.1 inches
  • HTSUS: 8541.10.0080
  • ECCN: EAR99
  • MSL Level: 1
  • Package Size: 0201 (0603 Metric)
