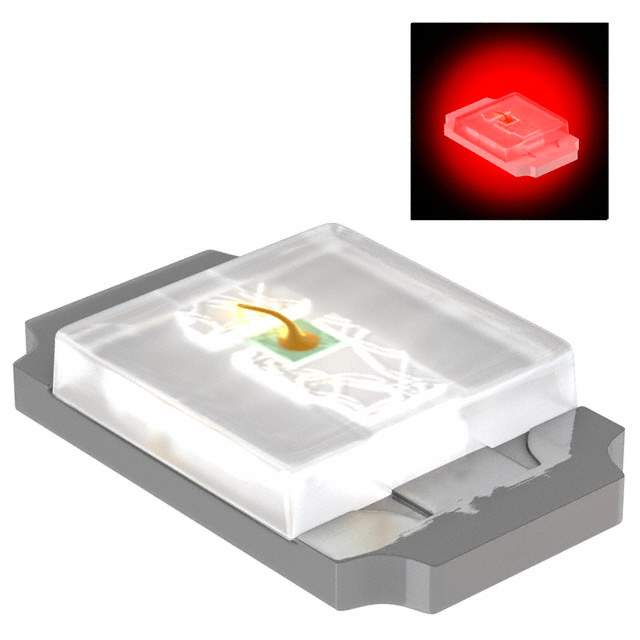

SML-P12UTT86R Real Image
Same model may have multiple batches, images only for reference.

SML-P12UTT86R

Part No SML-P12UTT86R
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED Uni-Color Red 2-Pin Chip 0402(1006Metric) T/R / LED RED 0.2MM 85MCD 0402 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Color Red
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 85mcd
Lens Style/Size Square with Flat Top, 0.60mm
Forward Voltage 2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 620nm
Case / Package PICOLED
Height (Max) 0.25mm
Win Source Part Number 1098504-SML-P12UTT86R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SML-P12UT(R)
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian SML-P12UTT86R CAD Model

Description

The Rohm Semiconductor SML-P12UT(R) is a high-quality SMD LED component that comes in a square shape with a flat top and a lens size of 0.60mm.

  • Lens Transparency: Clear
  • Color: Red
  • Dominant Wavelength: 620nm
  • Viewing Angle: 0 degrees
  • Millicandela Rating: 85mcd
  • Forward Voltage: 2V
  • Test Current: 20mA
  • Packaging: Reel
  • Halogen-Free: Compliant
  • Application: Optoelectronics
