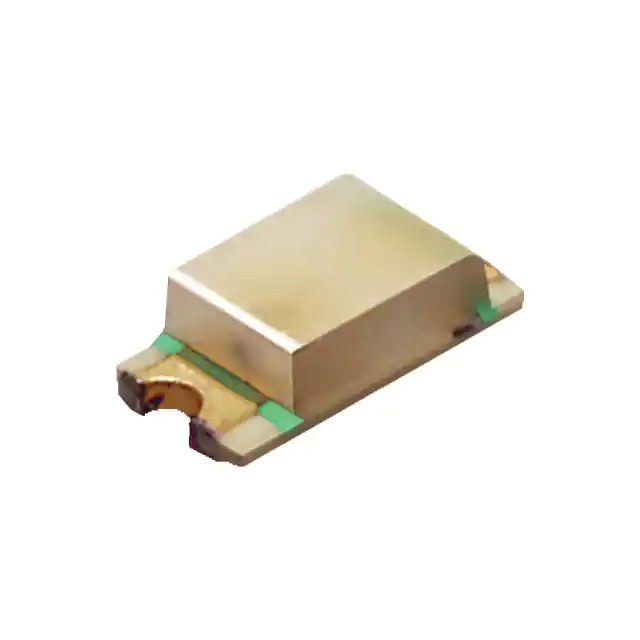

SML-D15U2WT86C Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-D15U2WT86C

Part No SML-D15U2WT86C
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED 1608 SMD
Datasheet
SML-D15U2WT86C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101, SML-D15
Package Tape & Reel
Product Status Active
Color Red
Configuration Standard
Lens Color White
Lens Transparency -
Millicandela Rating 140mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle -
Mounting Type Surface Mount
Wavelength - Dominant 615nm
Wavelength - Peak -
Features -
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D15
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371769-SML-D15U2WT86C
Ultra Librarian 3D Model Ultra Librarian SML-D15U2WT86C CAD Model

Description

The SML-D15U2WT86C is a discrete LED indication component manufactured by Rohm Semiconductor.

  • Series: Automotive
  • AEC-Q101 Compliant: Yes
  • Mounting Type: Surface-mount
  • Package: 0603 (1608 Metric)
  • Color: Red
  • Lens: White
  • Shape: Rectangular with a flat top
  • Forward Voltage: 2V
  • Test Current: 20mA
  • Dominant Wavelength: 615nm
  • Millicandela Rating: 140mcd
  • REACH: Unaffected
  • ECCN: EAR99
