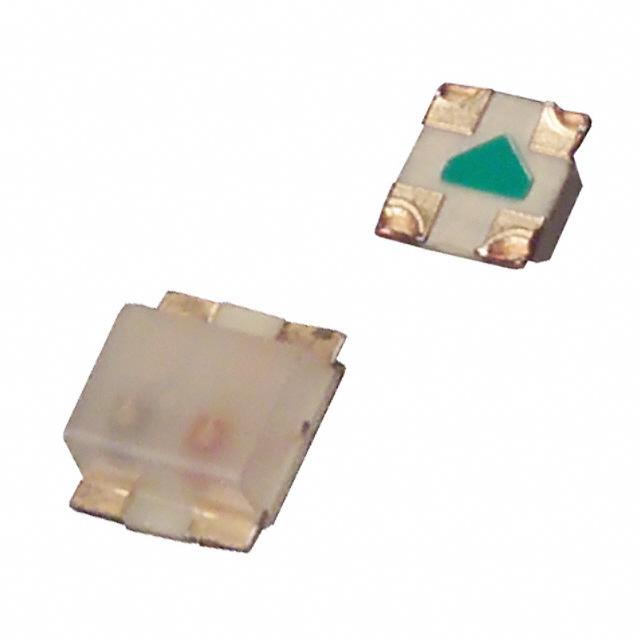

SML-522MUWT86 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-522MUWT86

Part No SML-522MUWT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description Abundant 2 color variations
Datasheet
SML-522MUWT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Series SML-52
Packaging Reel - TR
Color Green, Red
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 40mcd Green, 63mcd Red
Lens Style/Size Rectangle with Flat Top, 1.10mm x 1.30mm
Voltage - Forward (Vf) (Typ) 2.1V Green, 1.9V Red
Current - Test 20mA Green, 20mA Red
Mounting SMD
Wavelength - Dominant 572nm Green, 620nm Red
Package 0605 (1513 Metric)
Manufacturer Package 1315 (0605)
Size 1.50mm L x 1.30mm W
Height (Maximum) 0.70mm
Win Source Part Number 1252019-SML-522MUWT86
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Balance
Family Name SML-522MUWT86
Introduction Date June 09, 2010
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SML-522MUWT86 CAD Model

Description

This electronic component, with Win Source Part Number 1252019-SML-522MUWT86, is a rectangular, diffused LED manufactured by Rohm Semiconductor.

  • Series: SML-52
  • Packaging: Reel - TR
  • Lens Color: White
  • Millicandela Rating: 40mcd for green and 63mcd for red
  • Voltage-Forward (Vf): 2.1V for green and 1.9V for red @ 20mA
  • Test Current: 20mA for both colors
  • Wavelength-Dominant: 572nm for green and 620nm for red
  • Manufacturer Homepage: www.rohm.com
  • Supply and Demand: Balanced
