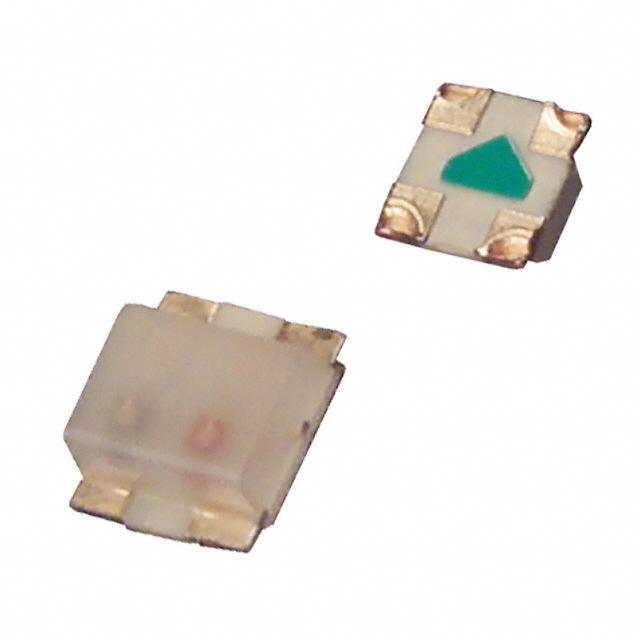

Same model may have multiple batches, images only for reference.
SML-522MU8WT86 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-522MU8WT86

Part No SML-522MU8WT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GREEN/RED DIFFUSED 0605 SMD
Datasheet
SML-522MU8WT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Color Green, Red
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 40mcd Green, 63mcd Red
Lens Style/Size Rectangle with Flat Top, 1.30mm x 1.10mm
Forward Voltage 2.2V Green, 2.2V Red
Current - Test 20mA Green, 20mA Red
Mounting SMD (SMT)
Wavelength - Dominant 572nm Green, 620nm Red
Case / Package 1315 (0605)
Height (Max) 0.70mm
Win Source Part Number 042692-SML-522MU8WT86
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SML-522MU8WT86 CAD Model

Description

The SML-522MU8WT86 is an electronic component manufactured by Rohm Semiconductor.

  • Supply and Demand Status: Balanced
  • Application: Optoelectronics
  • Color Option: Green and red color option
  • Forward Voltage: 2.2V for both colors
  • Viewing Angle: 0 degrees
