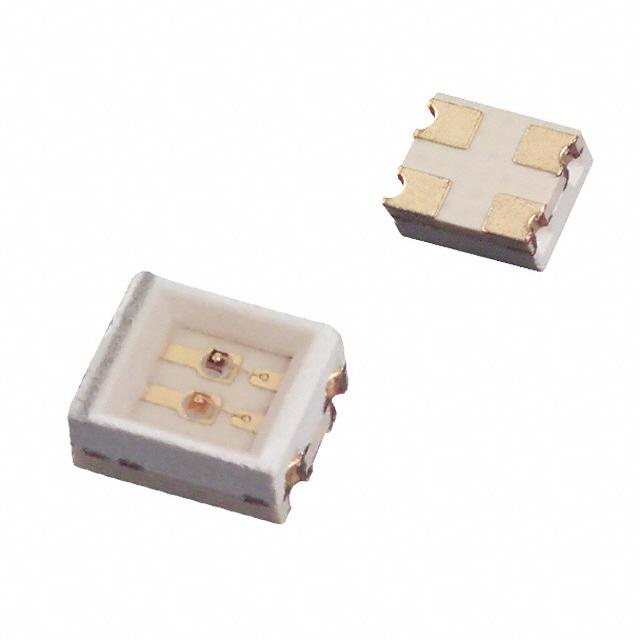

SML-020MLTT86 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-020MLTT86

Part No SML-020MLTT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR 1210 SMD
Datasheet
SML-020MLTT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 20mcd Green, 16mcd Red
Lens Style/Size Rectangle with Flat Top, 2.30mm x 2.10mm
Forward Voltage 2.2V Green, 1.75V Red
Current - Test 20mA Green, 20mA Red
Mounting SMD (SMT)
Wavelength - Peak 570nm Green, 660nm Red
Case / Package 1210(3025)
Height (Max) 1.50mm
Win Source Part Number 047069-SML-020MLTT86
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SML-020MLTT86 CAD Model

Description

The Rohm Semiconductor green and red LED components are independent and have a rectangle with a flat top lens style.

  • Configuration: Independent
  • Lens Style: Rectangle with a flat top
  • Green LED Forward Voltage: 2.2V
  • Green LED Viewing Angle: - degrees
  • Green LED Millicandela Rating: 20mcd
  • Red LED Forward Voltage: 1.75V
  • Red LED Viewing Angle: - degrees
  • Red LED Millicandela Rating: 16mcd
  • Green LED Wavelength Peak: 570nm
  • Red LED Wavelength Peak: 660nm
  • Mounting: SMD (SMT)
  • Package: 1210(3025)
  • Design Status: Not for new designs
